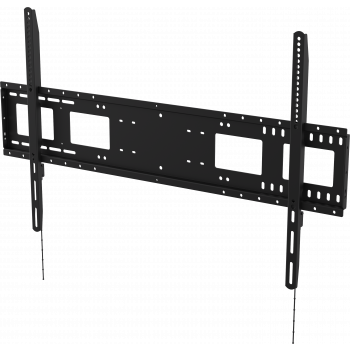

Heavy Duty Flat-Panel Wall Mount 1000×600

VFM-W10X6 EU SAP: 4934297 US SAP: 13557609
DUE 23 APRIL 2019 Replaces VFM-W12X6

Non-tilting Wall Mount for large-format flat panels 55-90″
Mounting points up to 1000 (wide) x 600 mm (tall) apart
Heavy duty 130 kg / 287 lb SWL
Display latches in place
Optional camera shelf

Vision’s Vision Flat-panel Mount – Wall range is designed by Vision’s engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W10X6 fits any flat-panel LCD or LED screen which has rear mounting holes up to 1000 wide x 600 mm tall apart.

Heavy Duty

Interactive flat panels are large and very heavy. Vision’s VFM-W10X6 uses heavy gauge sheet metal to take the weight up to SWL 130 kg / 287 lb safely.

Everything Included

Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.

For 55-90" Displays

Fits most displays from 55-90″. Note: curved screens are not supported by this mount.

Meets Regulations

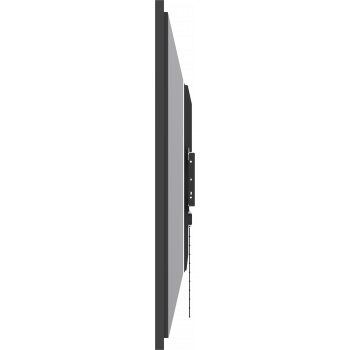

The thin design holds the display just 36 mm / 1.4″ off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.

Designed for Professionals

A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.

Latches Securely

The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.

Side by Side

Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.

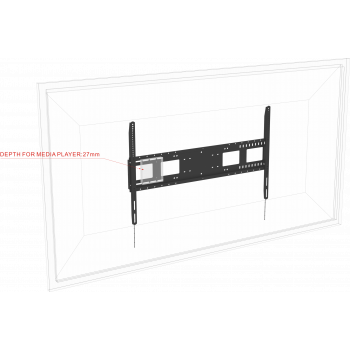

Hide Media Player

Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part  allow a thin media player to fix behind the display out of sight.

Optional Rotation

A rotary bearing assembly can be added, allowing the display to be turned from portrait to landscape. For this reason the vertical arms can be fixed to the horizontal rail from behind so the display doesn’t slide down the rail when the display is turned to portrait. Part Number: VFM-WRT [EU SAP tbc / US SAP tbc]

Side Shelf

An optional flip-up laptop shelf comes with an adjustable outrigger which fixes it to the horizontal section. It can be positioned at the correct height to the side of the display.  Part Number: VFM-WSS [EU SAP: 4857149 / US SAP: tbc]

Video Conference Shelf

An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha’s VVC-1000 – which fixes securely in place, and Barco’s Clickshare base stations. With VESA 100 x 100 mm holes on the vertical section, product’s like Heckler’s Zoom Room iPad enclosure can be fixed. Part Number: VFM-WVC [EU SAP: 5048878 / US SAP: tbc]

Logitech Rally Brackets

Additional optional brackets are available to fix Logitech’s Rally system hubs and soundbar to the optional video conference shelf. VFM-WLR [EU SAP: 5048877 / US SAP: tbc]

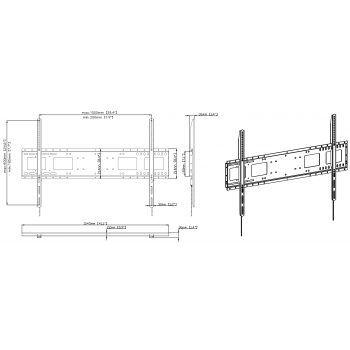

  • PRODUCT DIMENSIONS
  • 1045 x 635 x 36 mm / 41.1″ x 25.0″ x 1.4″ (height x width x depth)
  • PACKAGED DIMENSIONS
  • 1080 x 235 x 40 mm / 42.5″ x 9.3″ x 1.6″
  • PRODUCT WEIGHT
  • 6.4 kg (14.1 lbs)
  • PACKAGED WEIGHT
  • 7.5 kg (16.5 lbs)
  • SAFE WORKING LOAD
  • 130 kg (287 lbs)
  • CONTRUCTION MATERIAL
  • Cold-rolled Steel 3 mm (0.12")
  • COLOUR
  • Black
  • VESA SIZES
  • 1000 x 600 mm
    1000 x 500 mm
    1000 x 400 mm
    800 x 600 mm
    800 x 500 mm
    800 x 400 mm
    600 × 600 mm
    600 x 500 mm
    600 × 400 mm
    500 x 500 mm
    500 x 400 mm
    400 x 600 mm
    400 × 400 mm
    400 x 300 mm
    400 × 200 mm
    300 × 400 mm
    300 × 300 mm
  • ACCESSORIES INCLUDED
  • 4 x M5 16 mm screw
    4 x M6 16 mm screw
    4 x M6 25 mm screw
    4 x M8 16 mm screw
    4 x M8 35 mm screw
    2 x M8 45 mm screw
  • WARRANTY
  • Lifetime return-to-base
  • COMPLIANCES
  • RoHS
  • ORDER PART CODE
  • VFM-W10X6 [EU SAP: 4934297 / US SAP: 13557609]
  • OPTIONAL ADD-ONS
  • VFM-WRT Rotating Assembly [EU SAP: tba / US SAP: tba]
    VFM-WSS Side Shelf [EU SAP: 4857149 / US SAP: tba]
    VFM-WVC Video Conferencing Shelf [EU SAP: 5048878 / US SAP: tba]
    VFM-WLR Logitech Rally Brackets (fix to VFM-WVC) [EU SAP: 5048877 / US SAP: tba]
  • Country of Origin
  • China
