Telescopic Projector Ceiling Mount

TM-TELE EU SAP: 2418655 US SAP: 12939544

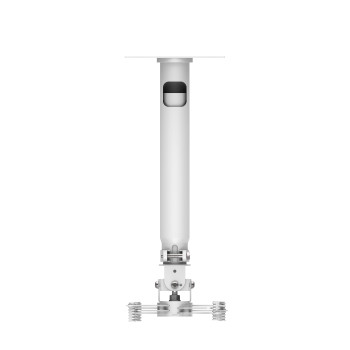

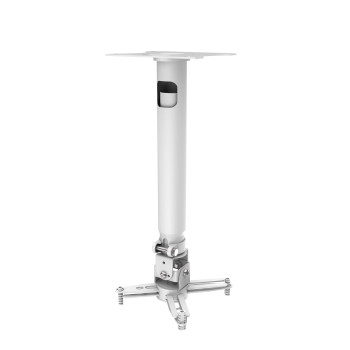

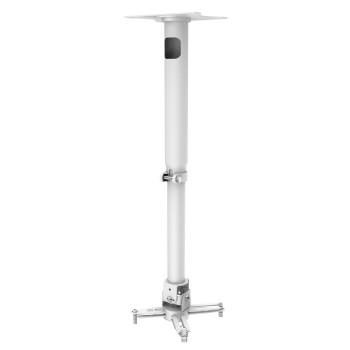

Universal projector ceiling mount with telescopic pole

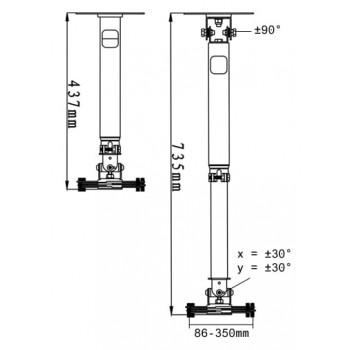

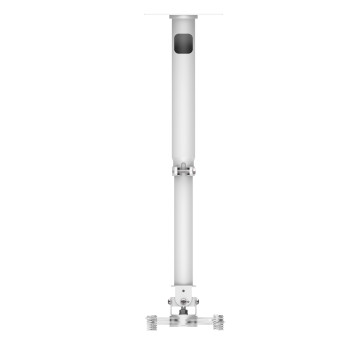

Overall length 440-735 mm (17.32″ – 28.94″)
Full adjustment: tilt at top for sloping ceilings / pitch and roll at the bottom

The TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole. It has a greater range than most other telescopic mounts and the pole can be removed for “flush-mounting” the projector as close to the ceiling as possible. Note: unlike the TM-1200 the length of this bracket cannot be extended.

One-Man Installation

Thoughtful design detail include a length adjustment clamp system which requires only one hand.

Sloping Ceilings

A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.

Safety Approved

A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated. Vision recommends a maximum safe working load of 10kg which is well within the limits of the product and meets the BSi installation standard specification (PAS122:2009).

Easy fit

Projectors have threaded inserts in the bottom for attachment – but not all use the same diameter screws so Vision includes a selection to suit most projectors. Simply locate the “spider” arms on our bracket over the attachment holes, and insert a screw into the projector.

Obstruction-free Cable Management

Vision’s unique ‘chute-through’ system leaves cable access clear – even for big VGA connectors.

Tools Included

A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.

Secure

Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.

  • BOX DIMENSIONS
  • 393 x 150 x 80 mm / 15.47″ x 5.91″ x 3.15″
  • PACKAGED WEIGHT
  • 3 kg / 6.61 lbs
  • SAFE WORKING LOAD
  • 10kg / 22.05 lbs
  • COLOUR
  • Satin White
  • ACCESSORIES INCLUDED
  • 1 x H50 Pin-Hex key
    1 x 17mm (0.7″) Spanner
    4 x M3 43mm (1.7″) screws
    4 x M4 43mm (1.7″) screws
    4 x M5 43mm (1.7″) screws
    4 x M6 43mm (1.7″) screws
    4 x M2.5 43mm (1.7″) pan slot
    4 x M8 50mm (2.0″) Ceiling Fixtures with rawl plugs
    1 x Safety Tether
    1 x Ceiling Trim Disc
  • WARRANTY
  • Lifetime return-to-base
  • COMPLIANCES
  • TUV-GS
  • ORDER PART CODE
  • TM-TELE [EU SAP: 2418655 / US SAP: 12939544]
  • Country of Origin
  • China
