TC3 USB-B to USB-A Module

Part Number: SAP: EAN:
  • Replaces TC2 USBB

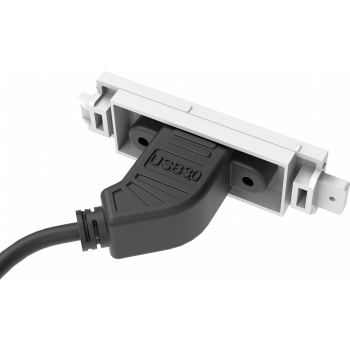

  • "A" type socket on the rear as found on a laptop chassis

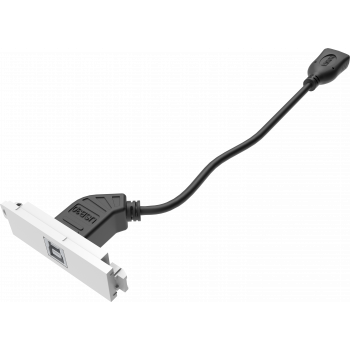

  • "B" type socket on the front as found on a printer chassis
  • Occupies 1 module space
  • USB 3.0 (backward compatible with 2.0)
Stock levels @ 24-December-24
  • Total 922
  • EU 181
  • UK 741
Incoming stock ETA
  • 1680 EU @ 30-Dec-24 UK @ 06-Jan-25
  • 2160 EU @ 13-Jun-25 UK @ 20-Jun-25
TC3 System Overview
TC3 System Overview
Faceplate Configurator
Faceplate Configurator
  • Share on
  • or

This module is part of Vision's Techconnect connectivity faceplate family.

Features

  • Backward Compatible

    Works with USB 2.0 or 3.0.

  • Fixes to Surround

    Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.

  • Future-proof

    If you break a module or need to change it in the future, just replace that part - not the entire faceplate.

  • Flexible

    Get to site and the client changes what they want on their AV faceplate? No problem.

  • Strong

    Techconnect parts are robust for the rigours of every day use. They include strengthening ribs and reinforcing where required.

  • Proven

    For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.

Related

Specifications

  • COLOR

    White

  • MATERIAL

    PC

  • PRODUCT DIMENSIONS

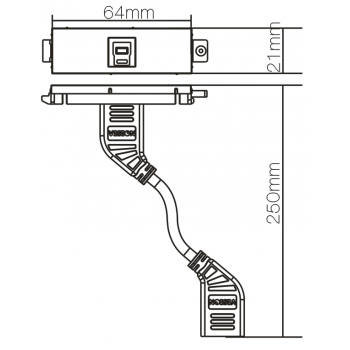

    64 x 21 x 45 mm / 2.52“ x 0.83" x 1.77" (height x width x depth)

  • PACKAGED WEIGHT

    44 g (0.1 lb)

  • PACKAGED DIMENSIONS

    120 x 200 mm / 4.7" x 7.9"

  • ORDER PART CODE

    TC3 USBB [SAP: 3446581]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

Downloads

Product PDF

TC3 USBB (English)

(en)
106.12 KB
Download
