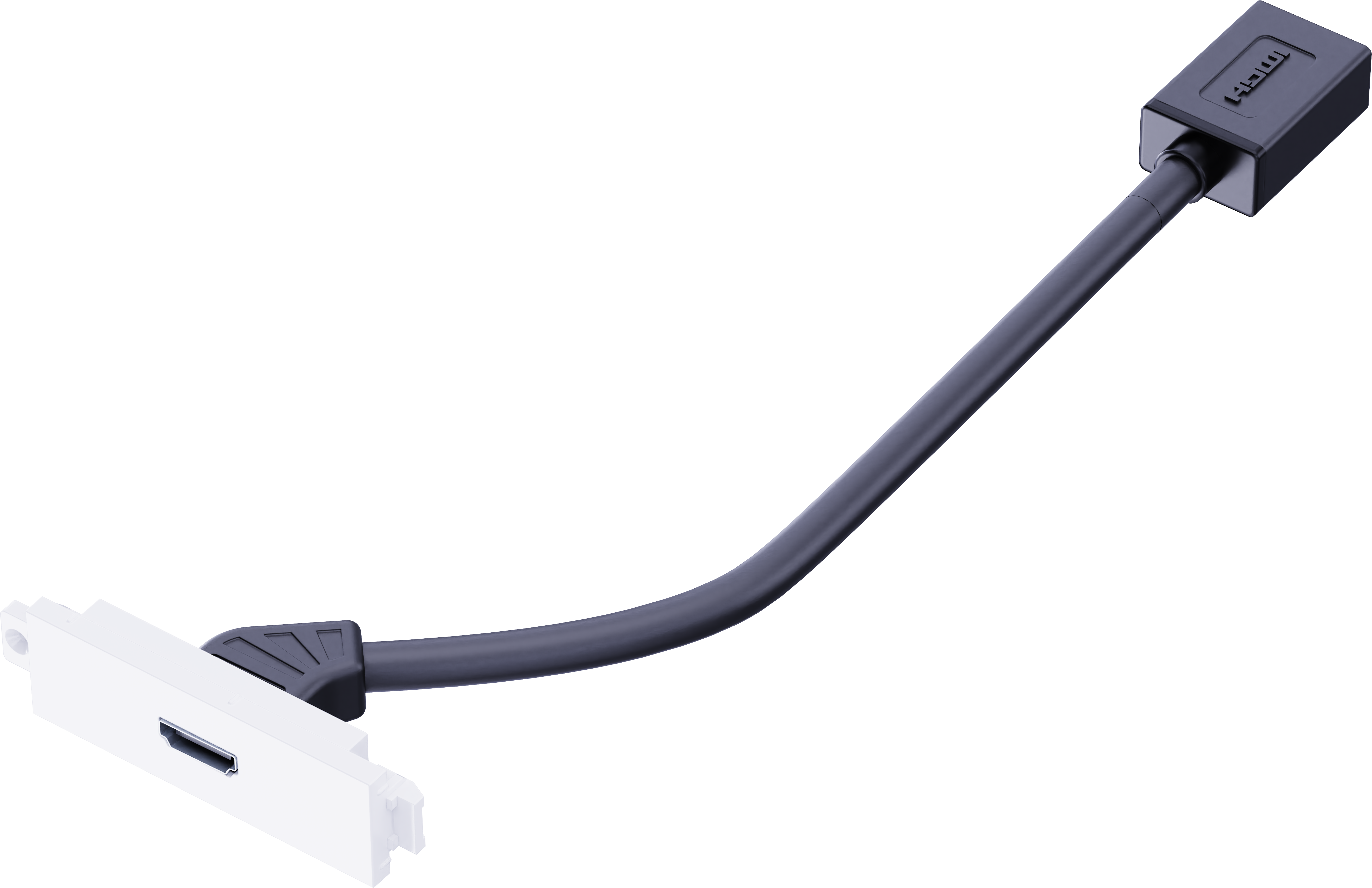

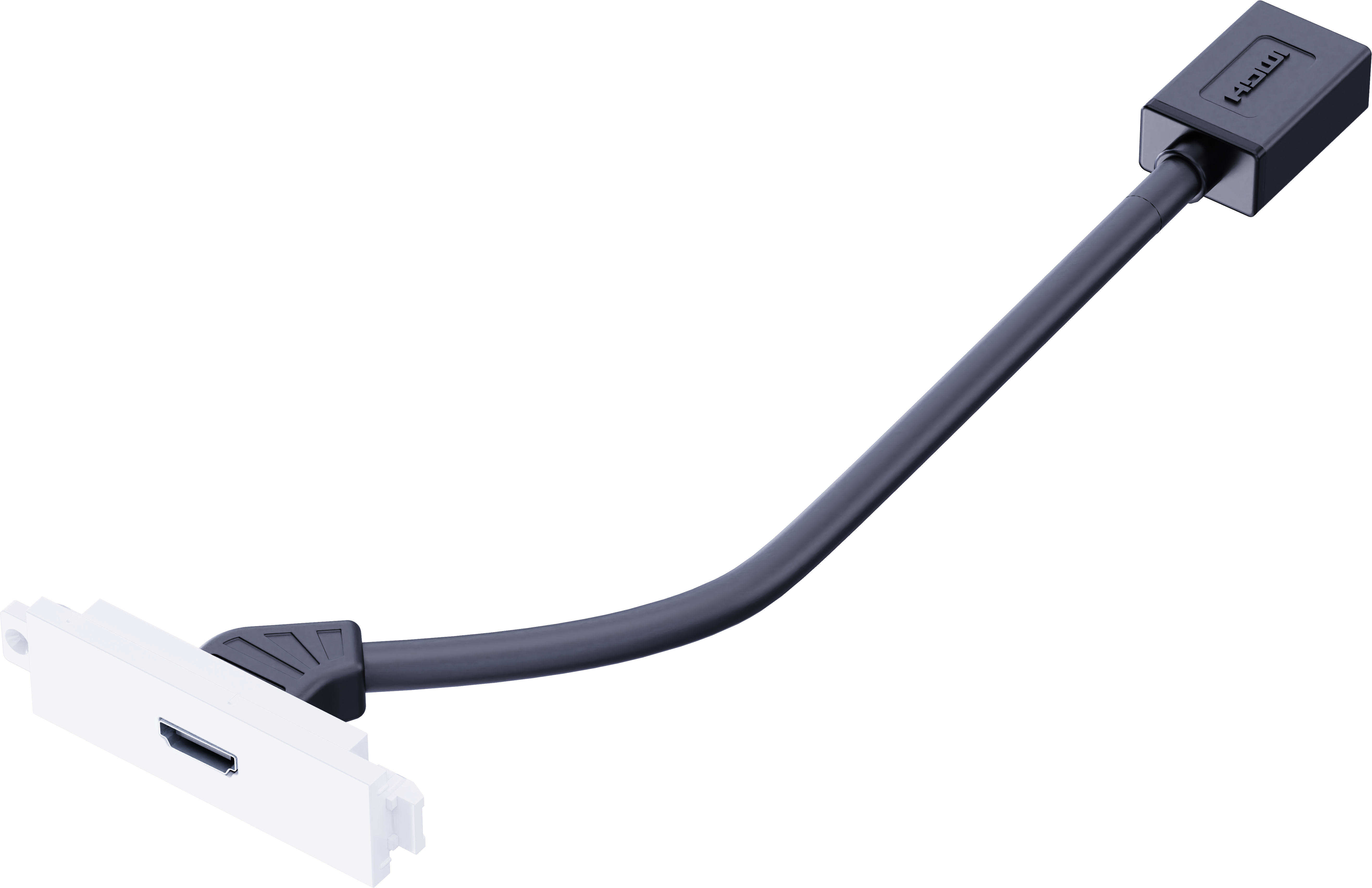

TC3 HDMI Module
Part Number:
SAP:
EAN:
- Replaces TC2 HDMI
Key Points
- HDMI module v2.1 (8K @ 60 Hz)

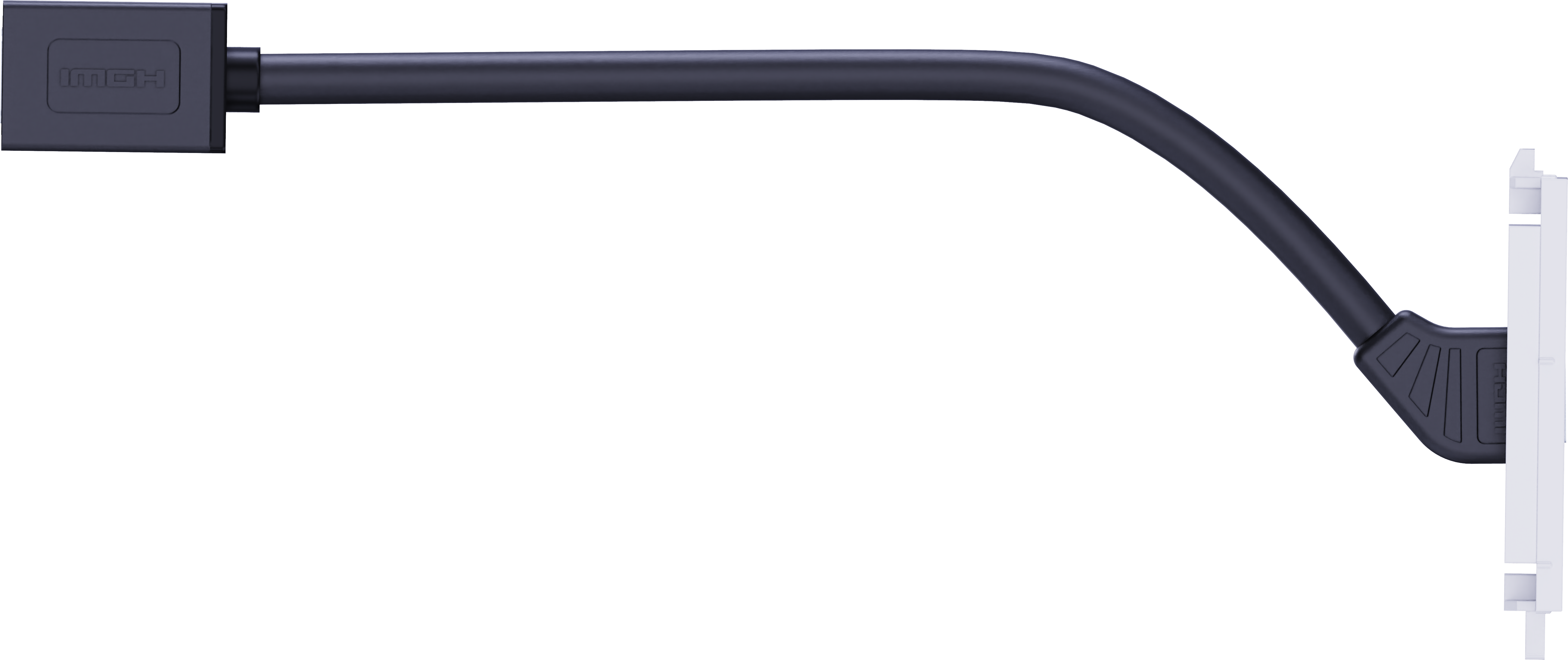

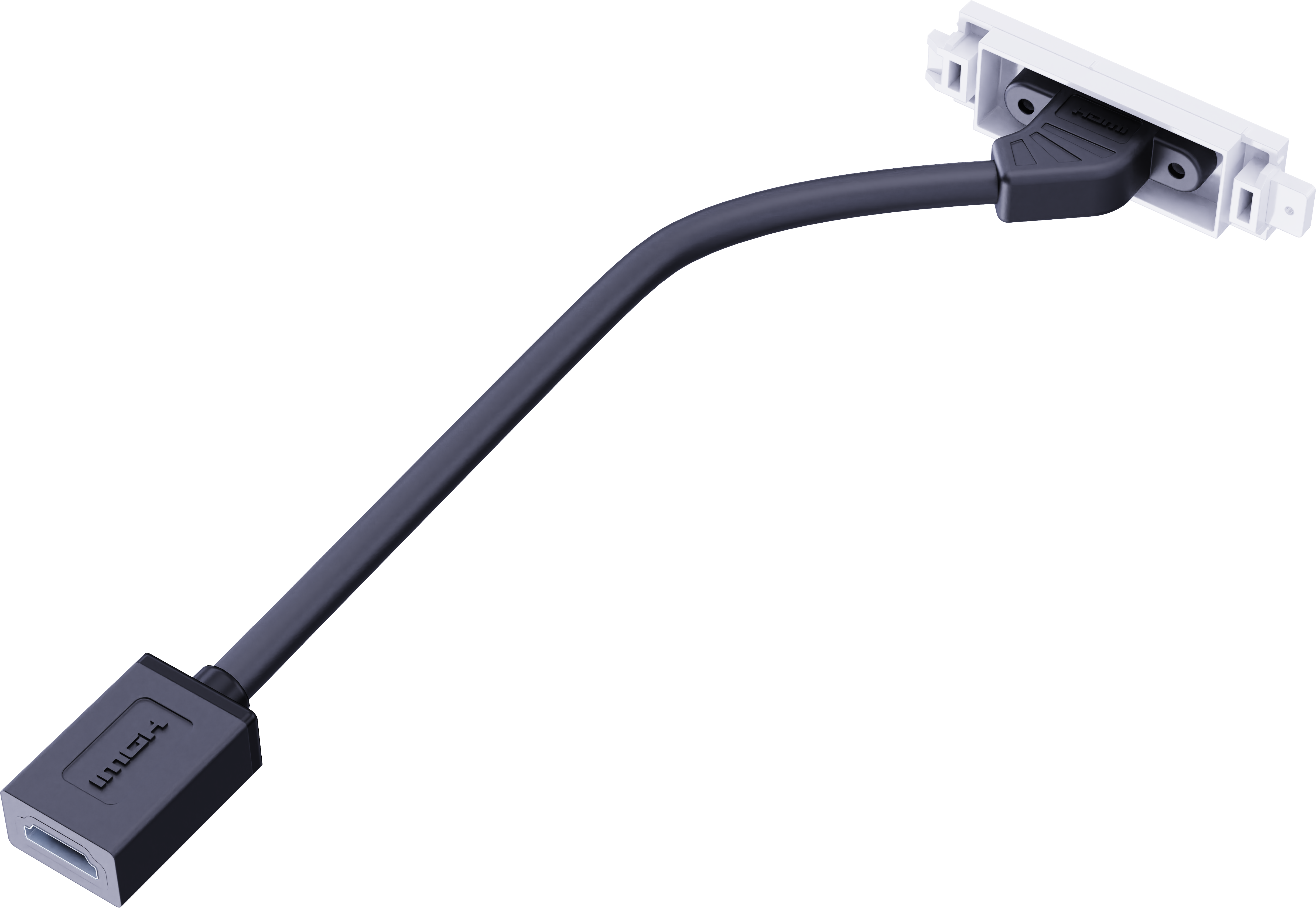

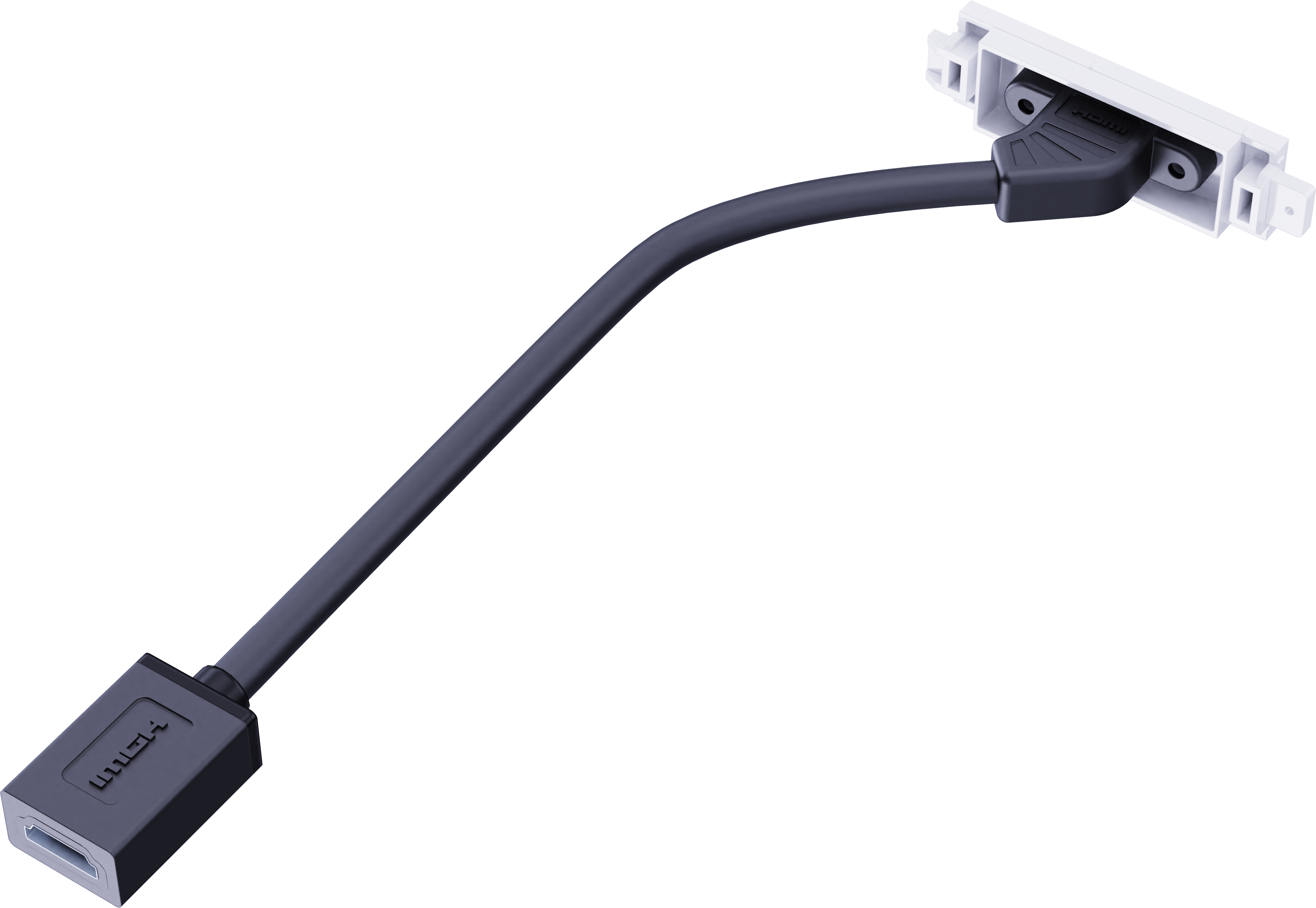

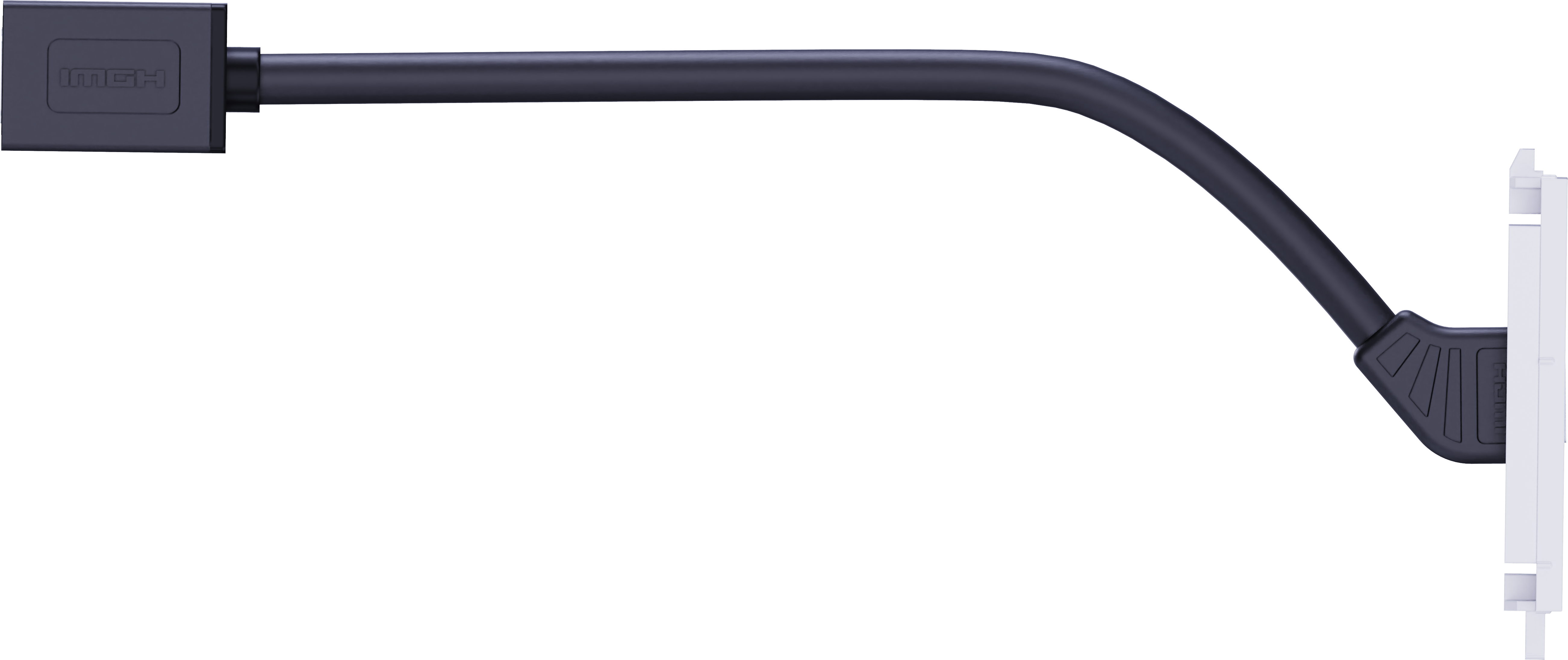

- Includes short cable at rear with female HDMI connector
- Carries digital audio and video over one cable
- Occupies 1 module space
Stock levels @ 15-October-25
- Total 1847
- EU 1149
- UK 698
Incoming stock ETA
- 3640 EU @ 17-Jan-26 UK @ 23-Jan-26
Introduction
This module is part of Vision's Techconnect connectivity faceplate family.
Features
-
Fixes to Surround
Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
-
Future-proof
If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
-
Flexible
Get to site and the client changes what they want on their AV faceplate? No problem.
-
Strong
Techconnect parts are robust for the rigours of every day use. They include strengthening ribs and reinforcing where required.
-
Proven
For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
Related
-
1x TC3 UK 1-Gang SurroundStock: 1088TC3 SURR1G / SAP: 3446602 -
1x TC3 UK 2-Gang SurroundStock: 1011TC3 SURR2G / SAP: 3446603 -
1x TC3 UK 1-Gang Surface-Mount BackboxStock: 197TC3 BACKBOX1G / SAP: 3446597 -
1x TC3 UK 2-Gang Surface-Mount BackboxStock: 368TC3 BACKBOX2G / SAP: 3446598 -
1x TC3 HDMI ModuleStock: 1847TC3 HDMI / SAP: 3446573 -
1x TC3 Blank ModuleStock: 107TC3 BLANK / SAP: 3446572 -
1x TC2-BEEnd of Life Stock: 0TC2-BE / SAP: 2925546 -
1x TC3 Table FaceplateEnd of Life Stock: 34TC3 SURRTB / SAP: 4875951 -
1x TC3 Belgian 65mm SurroundStock: 274TC3 SURRBE65 / SAP: 3446591 -
1x TC3 UK 1-Gang Surface-Mount BackboxStock: 197TC3 BACKBOX1G / SAP: 3446597
-
1x TC3 UK 2-Gang Surface-Mount BackboxStock: 368TC3 BACKBOX2G / SAP: 3446598
-
1x TC3 UK 1-Gang SurroundStock: 1088TC3 SURR1G / SAP: 3446602
-
1x TC3 UK 2-Gang SurroundStock: 1011TC3 SURR2G / SAP: 3446603
-
1x TC3 Minijack Module (phoenix on rear)Stock: 493TC3 3.5MM/V2 / SAP: 5354529 -
1x TC3 Blank ModuleStock: 107TC3 BLANK / SAP: 3446572
-
1x TC3 Brush ModuleStock: 54TC3 BRUSH / SAP: 4726966 -
1x TC3 HDMI ModuleStock: 1847TC3 HDMI / SAP: 3446573
-
1x Techconnect RJ45 ethernet moduleStock: 275TC3 RJ45/KS / SAP: 6862538 -
1x TC3 USB-A to USB-B ModuleStock: 471TC3 USBA / SAP: 3446580 -
1x TC3 USB-B to USB-A ModuleStock: 526TC3 USBB / SAP: 3446581 -
1x TC3 USB-B to USB-A Module with active booster circuitStock: 302TC3 USBB+ / SAP: 3446582 -
1x TC3 VGA and Audio Module (phoenix on rear)Stock: 103TC3 VGAF3.5MM / SAP: 3446585 -
1x TC3 VGA Module (phoenix on rear)End of Life Stock: 6TC3 VGAF / SAP: 3446584 -
1x TC3 HDMI Active Booster ModuleStock: 0TC3 HDMI+ / SAP: 7345515 -
1x 4K Techconnect Faceplate Pack 3mStock: 711TC3-PK3M / SAP: 9792795 -
1x 4K Techconnect Faceplate Pack 5mStock: 778TC3-PK5M / SAP: 9792793 -
1x 4K Techconnect Faceplate Pack 10mStock: 455TC3-PK10M / SAP: 9792816 -
1x AV Partsmaster 3m 1-Gang KitEnd of Life Stock: 0TC-3M?CSAVP1G
-
1x AV Partsmaster 5m 1-Gang KitEnd of Life Stock: 0TC-5M?CSAVP1G
-
1x AV Partsmaster 10m 1-Gang KitEnd of Life Stock: 0TC-10M?CSAVP1G
Specifications
-
PRODUCT DIMENSIONS
64 x 21 x 250 mm / 2.5" x 0.83" x 9.8"
-
PACKAGED WEIGHT
50 g (0.1 lb)
-
PACKAGED DIMENSIONS
120 x 200 mm / 4.72" x 7.87"
-
MATERIAL
PC
-
OUTER DIAMETER
7.3 mm
-
COLOR
White
-
CONDUCTOR THICKNESS
AWG 28
-
TAIL LENGTH
200mm (7.87")
-
8K @ 60 HZ
Input cable can be up to 3 m / 10'
Output cable can be up to 15 m / 49' long, but the refresh rate may need to be adjusted to 4K @ 30 Hz for cables longer than 5 m / 16' (depending on source and display) -
HDMI STANDARD
v2.1
-
DATA TRANSFER RATE
48 Gbit/s
-
CONNECTORS
Gold plated
-
AUDIO RETURN CHANNEL
Yes
-
SHIELDING
Double Shielded
-
WARRANTY
Lifetime return-to-base
-
COMPLIANCES
RoHS, WEEE, CE
-
ORDER PART CODE
TC3 HDMI [SAP: 3446573]
-
Country of Origin
China
-
ISO
ISO 9001:2015
