4K Techconnect Faceplate Pack 3m

Part Number: SAP: EAN:

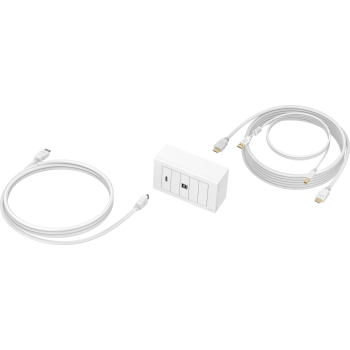

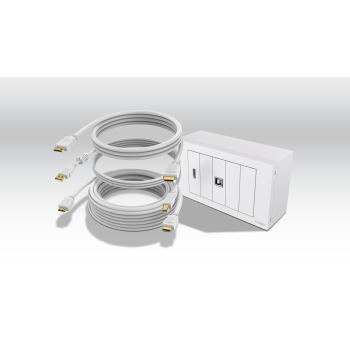

  • 4K @ 60 Hz Faceplate and Cable Package

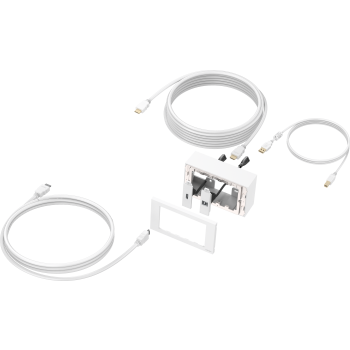

  • Mounting hardware: single-gang backbox and surround
  • Modules: 8K HDMI and USB 3.0
  • Input cable: 3 m 8K HDMI
  • Output cables: 3 m 8K HDMI and USB
  • Can be made DDA compliant on request
Stock levels @ 20-December-24
  • Total 367
  • EU 199
  • UK 168
Incoming stock ETA
  • 430 EU @ 29-Jan-25 UK @ 05-Feb-25
TC3 System Overview
TC3 System Overview
Configure a variation of this package
  • Share on
  • or

Techconnect is Europe's most popular modular audio-visual faceplate engineered especially for AV installers. It is made up of a “surround” that fits to a backbox - we use a standard UK size, then the modules fix into the surround to complete the installation.

This package includes common modules professional AV installers need for most basic interactive projector or display installations. It is a simple package that contains a basic selection of modules as a starting point, plus input and output cables.

We know from decades of experience that most connectivity issues are caused by using domestic-quality as input patch cables. Using professional-grade Vision cables for input and output eliminates bandwidth bottlenecks.

1/ Introducing joins in an HDMI signal chain reduces signal strength. This faceplate module introduces two joins.
2/ Some laptops output a weaker signal than others, and some displays are more sensitive to weak incoming signal. For this reason there is no guarantee of 4K @ 60 Hz.

In testing we found a 3m input cable and 15m output cable supported 60 Hz with most sources and displays.

If you cannot achieve 60 Hz use the booster module (TC3 HDMI+) which has an active circuit. If that doesn't work the combination of display and source you have is particularly sensitive to weak signal, and you will have to use a brush module (TC3 BRUSH) with one continuous HDMI cable between the source and display.

Features

  • Modules Included

    3 x BLANK modules
    1 x HDMI with tail on rear
    1 x USB USB 3.0 with tail on rear
    "A" type socket on the rear (the rectangle shape) / "B" type socket on the front (the square shape)

  • Cables Included

    Input Cable (from source to faceplate)
    3 m HDMI
    Note: interactive displays include a USB cable which can be used as the input patch cable, so we don't include one with this package. We do offer them as spares if you need them: TC2 3MUSB.

    Output Cables: (from faceplate to display)
    3 m HDMI
    3 m USB

  • 4K @ 60 Hz

    For the best chance of success all HDMI parts in this system are individually rated at 8K @ 60 Hz, and collectively at 4K @ 60 Hz.

  • Easy assembly

    Techconnect is easy to install and has more space behind the modules to stash cables.

  • Space for labelling

    The surround is white with a chiselled profile, and it has 11 mm of space above and below the modules for information or company branding stickers.

  • Stronger

    Techconnect has extra ribbing to reduce module flex and the plastic won't go brittle. We have designed them to last a lifetime.

  • Screw-In Modules

    The modules have a tab that hooks into the surround at the bottom, then a couple of turns of the pre-installed screws locks the modules into place.

  • Future-proof

    A family of modules work in the same surround, so if you ever need to change anything it is easy.

  • Optional DDA Sticker

    Laser-cut thin vinyl stickers are available that stick to the front of the surround, making it Disability Discrimination Act (replaced by UK Equalities Act 2010) compliant. Part number: TC3 SURR2G_DDA.

Related

Specifications

  • SURROUND DIMENSIONS

    86 x 86 x 8 mm / 3.4" x 3.4" x 0.3"

  • BACKBOX DIMENSIONS

    86 x 86 x 45 mm / 3.39" x 3.39" x 1.77"

  • CARTON DIMENSIONS

    275 x 180 x 80 mm (10.2"x 7.1" x 3.1")

  • PACKAGED WEIGHT

    0.8 kg / 1.8 lb

  • COLOUR

    Modules and Mounting Hardware: White
    Cables: White

  • HDMI MODULE SPEC

    HDMI Standard: v2.1
    Conductor Thickness: AWG 26
    Resolution: 8K @ 60 Hz
    Tail length: 200 mm (7.9")
    Material: ABS
    Dimensions: 64 x 21 mm / 2.5“ x 0.8" (height x width)

  • USB MODULE SPEC

    USB Standard: USB 3.0
    Material: ABS
    Tail length: 200 mm (7.9")
    Dimensions: 64 x 21 mm / 2.5" x 0.8" (height x width)

  • USB CABLE SPEC

    USB Standard: 2.0
    Bandwidth: 480 Mbit/s
    Conductor Thickness: AWG 28+24
    Outer Sheath Diameter: 4.5 mm (0.2")
    Outer Sheath Material: PVC
    Insulation Material: HDPE
    Connectors: gold plated
    Shielding: More than 65% coverage braided
    EMF Protection: Ferrite core at connector A end

  • HDMI CABLE SPEC

    HDMI Standard: v2.1
    Data Transfer rate: 48 Gbit/s
    Conductor Thickness: AWG 28
    Resolution: 8K @ 60 Hz
    Outer Sheath Diameter: 7.3 mm (0.3")
    Connectors: gold plated
    Shielding: double shielded
    Audio Return Channel: yes

  • MATERIAL

    Backbox: ABS
    Surround and modules: PC

  • COMPLIANCES

    RoHS, WEEE, CE

  • ORDER PART CODE

    TC3-PK3M [SAP: 9792795]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

TC3 UK 2-Gang Surround

  • COLOR

    White

  • MATERIAL

    PC

  • PRODUCT DIMENSIONS

    146 x 86 x 8 mm (5.75" x 3.39" x 0.31")

  • PACKAGED WEIGHT

    67 g (0.1 lb)

  • PACKAGED DIMENSIONS

    120 x 200 mm /4.7" x 7.9"

  • ORDER PART CODE

    TC3 SURR2G [SAP: 3446603]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

TC3 UK 2-Gang Surface-Mount Backbox

  • COLOR

    White

  • MATERIAL

    ABS Plastic

  • PRODUCT DIMENSIONS

    146 x 86 x 45mm / 5.75" x 3.39" x 1.77"

  • PACKAGED WEIGHT

    138 g (0.3 lb)

  • PACKAGED DIMENSIONS

    160 x 240 mm /6.3" x 9.4"

  • ORDER PART CODE

    TC3 BACKBOX2G [SAP: 3446598]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

TC3 Blank Module

  • COLOR

    White

  • MATERIAL

    PC

  • PRODUCT DIMENSIONS

    64 x 21 x 9 mm / 2.5" x 0.83" x 0.35"

  • PACKAGED WEIGHT

    8 g (0.04 lb)

  • PACKAGED DIMENSIONS

    90 x 150 mm/ 3.54" x 5.91"

  • ORDER PART CODE

    TC3 BLANK [SAP: 3446572]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

TC3 HDMI Module

  • COLOR

    White

  • MATERIAL

    PC

  • PRODUCT DIMENSIONS

    64 x 21 x 250 mm / 2.5" x 0.83" x 9.8"

  • PACKAGED WEIGHT

    50 g (0.1 lb)

  • PACKAGED DIMENSIONS

    120 x 200 mm / 4.72" x 7.87"

  • CONDUCTOR THICKNESS

    AWG 26

  • TAIL LENGTH

    200mm (7.87")

  • 4K @ 30 HZ

    Input cable can be up to 3 m / 10'
    Output cable can be up to 15 m / 49' long, but the refresh rate may need to be adjusted to 30 Hz for cables longer than 5 m / 16' (depending on source and display)

  • ORDER PART CODE

    TC3 HDMI [SAP: 3446573]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

TC3 USB-B to USB-A Module

  • COLOR

    White

  • MATERIAL

    PC

  • PRODUCT DIMENSIONS

    64 x 21 x 45 mm / 2.52“ x 0.83" x 1.77" (height x width x depth)

  • PACKAGED WEIGHT

    44 g (0.1 lb)

  • PACKAGED DIMENSIONS

    120 x 200 mm / 4.7" x 7.9"

  • ORDER PART CODE

    TC3 USBB [SAP: 3446581]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

White HDMI Cable 3m (10ft)

  • HDMI VERSION

    v2.0 (4K @ 60Hz)

  • BANDWIDTH

    340 MHz

  • SHEATH OUTER DIAMETER

    7.3 mm (0.29″)

  • CONDUCTOR THICKNESS

    28 AWG (American Wire Gauge)

  • PACKAGED WEIGHT

    0.20 kg (0.44 lb)

  • PACKAGED DIMENSIONS

    160 x 115 x 40 mm (6.3" x 4.53" x 1.57")

  • CONNECTORS

    GOLD-PLATED

  • DATA TRANSFER RATE

    18 Gbit/s

  • TYPE OF SHIELDING

    Double Shielded

  • AUDIO RETURN CHANNEL (ARC)

    Yes

  • 4K COMPLIANT

  • HIGH-SPEED (CATEGORY 2) WITH ETHERNET

  • ORDER PART CODE

    TC2 3MHDMI [SAP: 3000666]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015

White USB 2.0 Cable 3m (10ft)

  • INSULATION

    HDPE

  • SHEATH: PVC, OUTER DIAMETER

    4.5mm (0.18″)

  • CONDUCTOR THICKNESS

    28+24AWG

  • BANDWIDTH

    480Mbit/s

  • SHEILDING

    More than 65% coverage braided shield

  • COMPLIANCE

    RoHS, CE, FCC

  • PACKAGED WEIGHT

    0.12 kg (0.26 lb)

  • PACKAGED DIMENSION

    160 x 160 x 45 mm (6.3" x 6.3" x 1.8")

  • COLOR

    White

  • HIGH SPEED USB 2.0 CABLE

  • BRAIDED SHIELD AND FERRITE CORE AT CONNECTOR A (COMPUTER) END TO SHIELD AGAINST EMF AND RF INTERFERENCE

  • GOLD-PLATED CONNECTORS

  • ORDER PART CODE

    TC2 3MUSB [SAP: 3004700]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015
