Monitor Desk Post 100×100 Quad
- End of Life July 2022
Key Points
- Double-articulated desk mount for four displays up to 27″
- Black (only)
- Parts included for grommet or clamp fixing to desk
- Optional Laptop Shelf
- Quick release VESA plate
- Thumbscrews for fast assembly
- Fine independent height adjustment
- Total 0
Videos
Training
Introduction

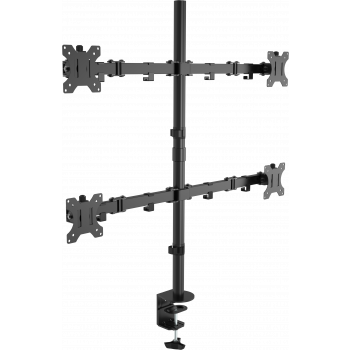

The VFM-DPQ2 (Vision Flat-panel Mount – Desk Post Quad) offers a massive range of movement and fits any monitors which have 75 x 75 mm or 100 x 100 mm rear mounting holes. Vision have obsessed over the detail to make it as quick and easy to install.
Features
-
Thumbscrews
Vision include more screws than other manufacturers to ensure you can successfully install your display with the screws included, and the screws are thumbscrews so you can be done faster, without a tool.
-
Quick Release
The VESA plates are quick-release to assist with fast assembly.
-
Optional Shelf
The shelf fixes to the mount’s VESA plate and supports laptops or tablets from 240-420 mm (9.5-16.5″) wide. Adjustable clamps help secure the device in place.
-
SWL 8 kg
The VFM-DPQ can support four monitors up to 8 kg (17.6 lbs) each.
-
Display Size 13-32″
If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.
-
Double-Pivot
Two articulated points in each horizontal arms allow a huge range of positioning. The arm reach is up to 399 mm (15.7").
-
Cable Management
Clips on the arm secure cables which can be routed along the mount.
-
Variable Height
Slide the arm up and down the post, then lock off at required height. The post is 883 mm (34.8") tall.
-
Desk Thickness
The clamp fixes to a table from 10-88 mm (0.4-3.5″) thick.
-
Grommet Included
For some applications you need to drill a hole in the table and fix the mount directly.
-
Swivel and Tilt
The ultra-flexible design gives -45°~45° of tilt adjustment, and -90°~90° of swivel range.
-
Rotate
Easily move the monitor from landscape to portrait style.
-
Scratch-Resistant
The powder-coated surface is thicker and more scratch resistant than paint.
-
Independent Height Adjustment
Fine height adjustment of each monitor allows the installer to get perfect height alignment.
Videos
Related
-
1x Black Monitor Desk Post 100×100Stock: 257VFM-DP2B / SAP: 4740217
-
1x Black Monitor Desk Post 100×100 DualStock: 1402VFM-DPD2B / SAP: 4740219
-
1x Monitor Desk Stand 100×100Stock: 0VFM-DSB / SAP: 4740100
-
1x Monitor Desk Stand 100×100 DualStock: 929VFM-DSDB / SAP: 4740212
-
1x Black Monitor Desk Arm 100×100Stock: 443VFM-DA/4 / SAP: 5811699
-
1x Black Monitor Desk Arm 100×100 DualStock: 504VFM-DAD/4 / SAP: 5812011
Specifications
-

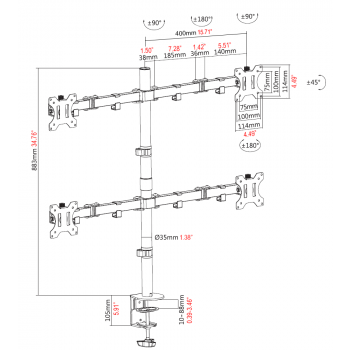

PRODUCT DIMENSIONS
988 x 913 x 148 mm / 38.9″ x 35.9″ x 5.8″
-
PACKAGED DIMENSIONS
592 x 185 x 123 mm / 23.3″ x 7.3″ x 4.8″ (length x width x height)
-
PRODUCT WEIGHT
7.1 kg / 15.7 lbs
-
PACKAGED WEIGHT
8.14 kg / 17.9 lbs
-
SAFE WORKING LOAD
8 kg (17.6 lbs) per screen
-
CONTRUCTION MATERIAL
Powercoated Steel
-
COLOUR
Black
-
VESA SIZES
75 × 75 mm
100 × 100 mm -
ACCESSORIES INCLUDED
16 x M4 12 mm (1/2″) screw
16 x M4 16 mm (2/3″) screw
16 x M5 12 mm (1/2″) screw
16 x M5 16 mm (2/3″) screw -
WARRANTY
Lifetime return-to-base
-
COMPLIANCES
RoHS, REACH
-
OPTIONAL SHELF: ORDER PART CODE
VFM-DP2SHELFB [EU SAP: 4850694 / US SAP: 13445510]
-
OPTIONAL SHELF: PRODUCT DIMENSIONS
300 x 280 x 60 mm / 11.8″ x 11″ x 2.4″ (height x width x depth)
-
OPTIONAL SHELF: PACKAGED DIMENSIONS
320 x 288 x 50 mm / 12.6″ x 11.3″ x 1.9″
-
OPTIONAL SHELF: PRODUCT WEIGHT
1.2 kg / 2.6 lb
-
OPTIONAL SHELF: PACKAGED WEIGHT
1.4 kg / 3.1 lb
-
OPTIONAL SHELF: ACCESSORIES INCLUDED
4 x M4 12 mm (0.5″) screw
-
ORDER PART CODE
VFM-DPQ2B [SAP: 4740098]
-
Country of Origin
China
-
ISO
ISO 9001:2015
