Key Points
- Double-articulated desk mount for displays up to 34″
- Popular post-style in Black
- Parts included for grommet or clamp fixing to desk
- Optional Laptop Shelf
- Quick release VESA plate
- Thumbscrews for fast assembly
- Total 692
- EU 642
- UK 50
Videos
Training
Introduction

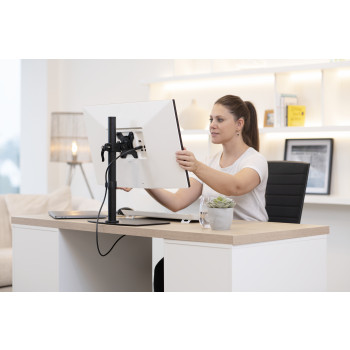

The VFM-DP2 (Vision Flat-panel Mount – Desk Post) offers a massive range of movement and fits any monitor which has 75 x 75 mm or 100 x 100 mm rear mounting holes. Vision have obsessed over the detail to make it as quick and easy to install.
Features
-
Thumbscrews
Vision include more screws than other manufacturers to ensure you can successfully install your display with the screws included, and the screws are thumbscrews so you can be done faster, without a tool.
-
Quick Release
The VESA plate is quick-release to assist with fast assembly.
-
Optional Shelf
The shelf fixes to the mount’s VESA plate and supports laptops or tablets from 240-420 mm (9.5-16.5″) wide. Adjustable clamps help secure the device in place.
-
SWL 8 kg
The VFM-DP2 can support monitors up to 8 kg (17.6 lbs).
-
Display Size 13-32″
If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.
-
Double-Pivot

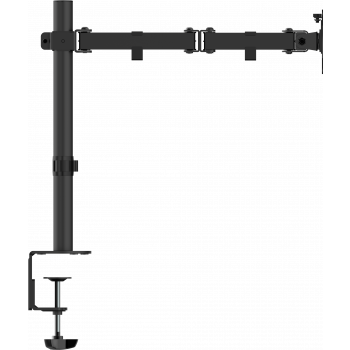

Two articulated points in the horizontal arm allow a huge range of positioning. The arm reach is up to 460 mm (18″).
-
Cable Management
Clips on the arm secure cables which can be routed along the mount.
-
Variable Height

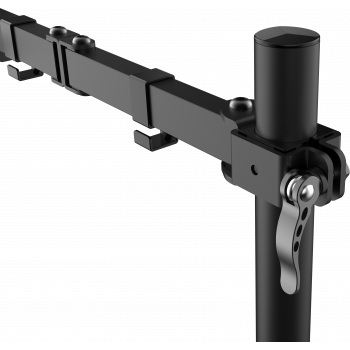

Slide the arm up and down the post, then lock off at required height. The post is 443 mm (17.3″) tall.
-
Desk Thickness
The clamp fixes to a table from 10-88 mm (0.4-3.5″) thick.
-
Grommet Included
In some applications you might prefer to drill a hole in the table and fix the mount directly.
-
Swivel and Tilt
The ultra-flexible design gives -45°~45° of tilt adjustment, and -90°~90° of swivel range.
-
Rotate
Easily move the monitor from landscape to portrait style.
-
Scratch-Resistant
The powder-coated surface is thicker and more scratch resistant than paint.
Videos
Related
-
1x Black Monitor Desk Post 100×100 DualStock: 447VFM-DPD2B / SAP: 4740219
-
1x Monitor Desk Stand 100×100Stock: 1845VFM-DSB / SAP: 4740100
-
1x Monitor Desk Stand 100×100 DualStock: 830VFM-DSDB / SAP: 4740212
-
1x Black Monitor Desk Arm 100×100Stock: 346VFM-DA/4 / SAP: 5811699
-
1x Black Monitor Desk Arm 100×100 DualStock: 454VFM-DAD/4 / SAP: 5812011
-
1x Black Monitor Desk Post 100×100 DualStock: 447VFM-DPD2B / SAP: 4740219
-
1x Monitor Desk Stand 100×100Stock: 1845VFM-DSB / SAP: 4740100
-
1x Monitor Desk Stand 100×100 DualStock: 830VFM-DSDB / SAP: 4740212
-
1x Black Monitor Desk Arm 100×100Stock: 346VFM-DA/4 / SAP: 5811699
-
1x Black Monitor Desk Arm 100×100 DualStock: 454VFM-DAD/4 / SAP: 5812011
Specifications
-

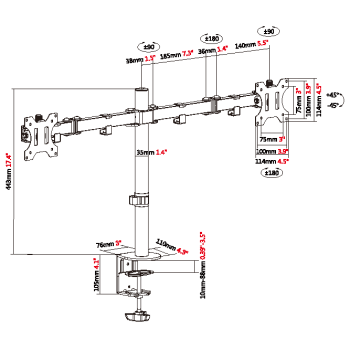

PRODUCT DIMENSIONS
548 x 520 x 114 mm / 21.6″ x 20.5″ x 4.5″
-
PACKAGED DIMENSIONS
489 x 180 x 120 mm / 19.3″ x 7.1″ x 4.7″
-
PRODUCT WEIGHT
2.9 kg / 6.4 lbs
-
PACKAGED WEIGHT
3.74 kg / 8.2 lbs
-
SAFE WORKING LOAD
8 kg (17.6 lbs)
-
CONTRUCTION MATERIAL
Powdercoated Steel
-
COLOUR
Black
-
VESA SIZES
75 × 75 mm
100 × 100 mm -
ACCESSORIES INCLUDED
4 x M4 12 mm (1/2″) screw
4 x M4 16 mm (2/3″) screw
4 x M5 12 mm (1/2″) screw
4 x M5 16 mm (2/3″) screw -
WARRANTY
Lifetime return-to-base
-
COMPLIANCES
RoHS, REACH
-
MANUFACTURER PART NUMBER
VFM-DP2B [SAP: 4740217]
-
ORDER PART CODE
VFM-DP2B [SAP: 4740217]
-
Country of Origin
China
-
ISO
ISO 9001:2015
