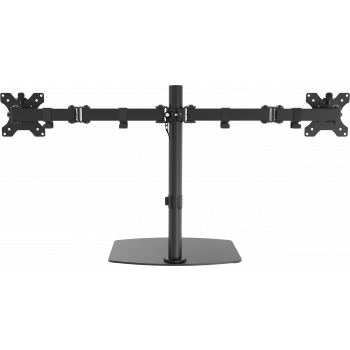

  • VFM-DSDB_rear_clamp.png
  • VFM-DSDB_side.png

Monitor Desk Stand 100×100 Dual

/ EU SAP: / US SAP:

Freestanding desk stand for two displays up to 32″
Black (only)
Full adjustment: height, rotation, swivel
Optional Laptop Shelf
Quick release VESA plate
Thumbscrews for fast assembly
Fine independent height adjustment

Stock levels @ 28-July-21
  • Total 641
  • EU 501
  • UK 140
Incoming stock ETA
  • 1024 EU @ 04-October-21 UK @ 11-October-21
  • Share on
  • or

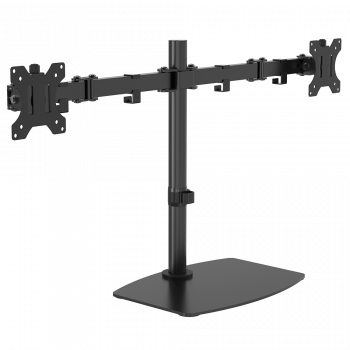

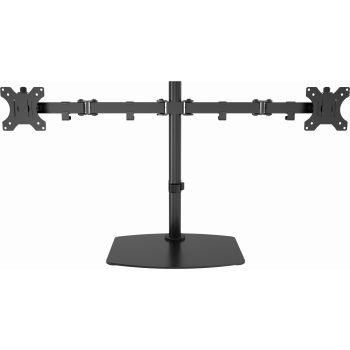

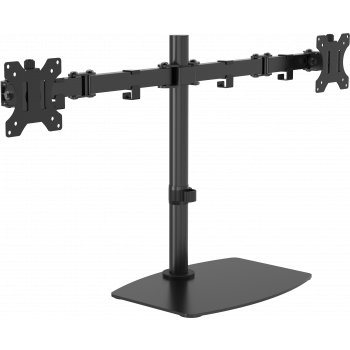

The VFM-DSD (Vision Flat-panel Mount – Desk Stand Dual) takes the popular desk post mount and replaces the clamp with an attractive flat base. It fits any two monitors which have 75 x 75 mm or 100 x 100 mm rear mounting holes. Vision have obsessed over the detail to make it as quick and easy to setup.

Features

  • Thumbscrews

    Vision include more screws than other manufacturers to ensure you can successfully install your display with the screws included, and the screws are thumbscrews so you can be done faster, without a tool.

  • Quick Release

    The VESA plates are quick-release to assist with fast assembly.

  • Optional Shelf

    The shelf fixes to the mount’s VESA plate and supports laptops or tablets from 240-420 mm (9.5-16.5″) wide. Adjustable clamps help secure the device in place.

  • SWL 8 kg

    The VFM-DSD can support two monitors up to 8 kg (17.6 lbs) each.

  • Display Size 13-32″

    If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

  • Double-Pivot

    Two articulated points in each horizontal arms allow a huge range of positioning. The arm reach is up to 399 mm (15.7").

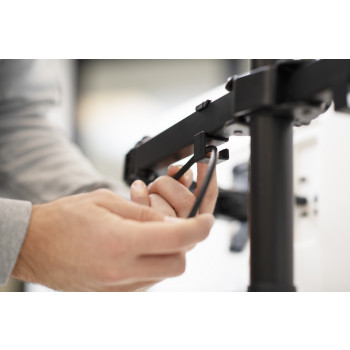

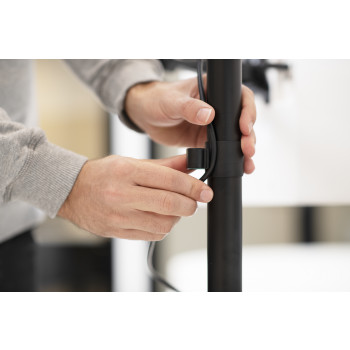

  • Cable Management

    Clips on the arm secure cables which can be routed along the mount.

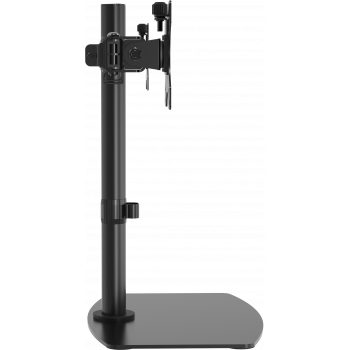

  • Variable Height

    Slide the arm up and down the post, then lock off at required height. The post is 452 mm (17.8") tall.

  • Swivel and Tilt

    The ultra-flexible design gives -45°~45° of tilt adjustment, and -90°~90° of swivel range.

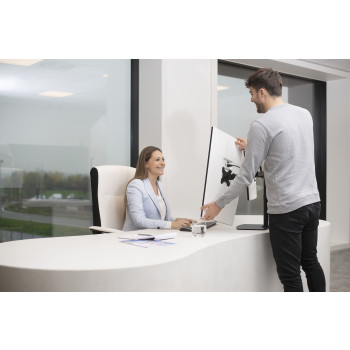

  • Rotate

    Easily move the monitor from landscape to portrait style.

  • Scratch-Resistant

    The powder-coated surface is thicker and more scratch resistant than paint.

  • Independent Height Adjustment

    Fine height adjustment of each monitor allows the installer to get perfect height alignment.

Videos

Related products

Specifications

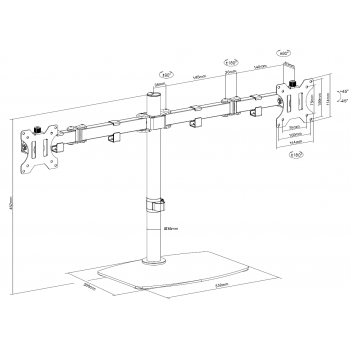

  • PRODUCT DIMENSIONS

    548 x 913 x 148 mm / 35.9 x 5.8 x 4.5″

  • PACKAGED DIMENSIONS

    470 x 257 x 88 mm / 18.5″ x 10.1″ x 3.5″ (length x width x height)

  • PRODUCT WEIGHT

    5.98 kg (13.18 lbs)

  • PACKAGED WEIGHT

    6.54 kg / 14.42 lbs

  • SAFE WORKING LOAD

    8 kg (17.6 lbs)

  • CONSTRUCTION MATERIAL

    Powdercoated Steel

  • COLOUR

    Black

  • VESA SIZES

    75 × 75 mm
    100 × 100 mm

  • ACCESSORIES INCLUDED

    8 x M4 12 mm (1/2″) screw
    8 x M4 16 mm (2/3″) screw
    8 x M5 12 mm (1/2″) screw
    8 x M5 16 mm (2/3″) screw

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    REACH

  • OPTIONAL SHELF: ORDER PART CODE

    VFM-DP2SHELFB [EU SAP: 4850694 / US SAP: 13445510]

  • OPTIONAL SHELF: PRODUCT DIMENSIONS

    300 x 280 x 60 mm / 11.8″ x 11″ x 2.4″ (height x width x depth)

  • OPTIONAL SHELF: PACKAGED DIMENSIONS

    320 x 288 x 50 mm / 12.6″ x 11.3″ x 1.9″

  • OPTIONAL SHELF: PRODUCT WEIGHT

    1.2 kg / 2.6 lb

  • OPTIONAL SHELF: PACKAGED WEIGHT

    1.4 kg / 3.1 lb

  • OPTIONAL SHELF: ACCESSORIES INCLUDED

    4 x M4 12 mm (0.5″) screw

  • ORDER PART CODE

    VFM-DSDB [EU SAP: 4740212 / US SAP: 13445542]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015
