White Monitor Desk Post 100×100

/ EU SAP: / US SAP:

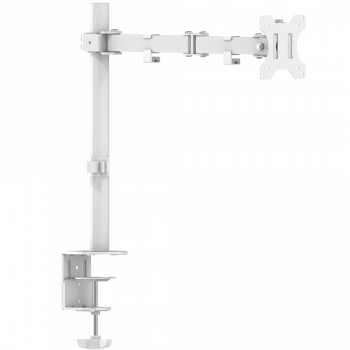

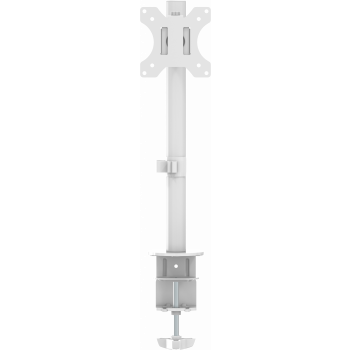

Double-articulated desk mount for displays up to 32″
Popular post-style in White
Parts included for grommet or clamp fixing to desk
Optional Laptop Shelf
Quick release VESA plate
Thumbscrews for fast assembly

Stock levels @ 26-November-21
  • Total 253
  • EU 169
  • UK 84
  • Share on
  • or

The VFM-DP2 (Vision Flat-panel Mount – Desk Post) offers a massive range of movement and fits any monitor which has 75 x 75 mm or 100 x 100 mm rear mounting holes. Vision have obsessed over the detail to make it as quick and easy to install.

Features

  • Thumbscrews

    Vision include more screws than other manufacturers to ensure you can successfully install your display with the screws included, and the screws are thumbscrews so you can be done faster, without a tool.

  • Quick Release

    The VESA plate is quick-release to assist with fast assembly.

  • Optional Shelf

    The shelf fixes to the mount’s VESA plate and supports laptops or tablets from 240-420 mm (9.5-16.5″) wide. Adjustable clamps help secure the device in place.

  • SWL 8 kg

    The VFM-DP2 can support monitors up to 8 kg (17.6 lbs).

  • Display Size 13-32″

    If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

  • Double-Pivot

    Two articulated points in the horizontal arm allow a huge range of positioning. The arm reach is up to 460 mm (18″).

  • Cable Management

    Clips on the arm secure cables which can be routed along the mount.

  • Variable Height

    Slide the arm up and down the post, then lock off at required height. The post is 443 mm (17.3″) tall.

  • Desk Thickness

    The clamp fixes to a table from 10-88 mm (0.4-3.5″) thick.

  • Grommet Included

    In some applications you might prefer to drill a hole in the table and fix the mount directly.

  • Swivel and Tilt

    The ultra-flexible design gives -45°~45° of tilt adjustment, and -90°~90° of swivel range.

  • Rotate

    Easily move the monitor from landscape to portrait style.

  • Scratch-Resistant

    The powder-coated surface is thicker and more scratch resistant than paint.

Videos

Related products

Specifications

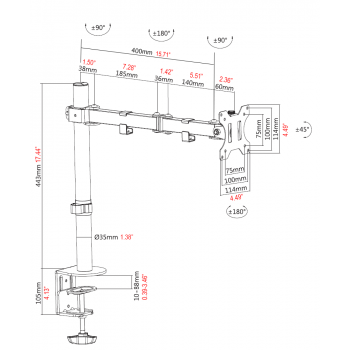

  • PRODUCT DIMENSIONS

    548 x 520 x 114 mm / 21.6″ x 20.5″ x 4.5″

  • PACKAGED DIMENSIONS

    489 x 180 x 120 mm / 19.3″ x 7.1″ x 4.7″

  • PRODUCT WEIGHT

    2.9 kg / 6.4 lbs

  • PACKAGED WEIGHT

    3.74 kg / 8.2 lbs

  • SAFE WORKING LOAD

    8 kg (17.6 lbs)

  • CONTRUCTION MATERIAL

    Powdercoated Steel

  • COLOUR

    White

  • VESA SIZES

    75 × 75 mm
    100 × 100 mm

  • ACCESSORIES INCLUDED

    4 x M4 12 mm (1/2″) screw
    4 x M4 16 mm (2/3″) screw
    4 x M5 12 mm (1/2″) screw
    4 x M5 16 mm (2/3″) screw

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    RoHS, REACH

  • OPTIONAL SHELF

    VFM-DP2SHELFW [EU SAP: 4850693 / US SAP: 13445509]

  • ORDER PART CODE

    VFM-DP2W [EU SAP: 4740218 / US SAP: 13445505]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015
