VFM-DP Flat-Panel Desk Post 100×100

Snapshotvfm-dp

> Double-articulated desk mount for flat panels up to 30″
> Cable management
> Flexible low-cost post-style design





vfm-dp_side

Details

Vision’s Vision Flat-Panel Mount – Desk range is tough and flexible. The VFM-DP (desk post) fits any flat-panel LCD or LED screen which has 100 x 100mm rear mounting holes – most computer monitors.

SWL 10 kg
The VFM-DP can support monitors up to 10 kg (22 lb).

Up to 30″
If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

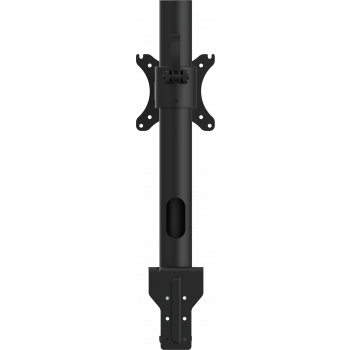

vfm-dp_rearDouble-Pivot
Two articulated points in the horizontal arm allow a huge range of positioning.

Cable Management
Clips on the arm secure cables which can then be dropped down inside the post for tidy cable routing.

Variable Height
Slide articulated arm up and down the post, then lock off at required height. The post is 392 mm (15.4″) tall.

Freedom of Movement
85-15° of tilt adjustment, and 180° of rotation adjustment, plus the double-articulated arms puts the display right where you need it.

Quick Manual

Specifications

vfm-dp_frontPRODUCT DIMENSIONS: see image

PACKAGED DIMENSIONS: 427 x 177 x 126 mm / 16.81″ x 6.97″ x 4.96″ (length x width x height)

PRODUCT WEIGHT: 2.65 kg (5.8 lbs)

PACKAGED WEIGHT: 3 kg / 19.84 lbs

SAFE WORKING LOAD: 10 kg (22 lbs)

CONTRUCTION MATERIAL: Steel

COLOUR: Black

VESA SIZES:
100 × 100 mm / 3.9″ x 3.9″

ACCESSORIES INCLUDED:
4 x M4 12mm screw
4 x M5 12mm screw

WARRANTY: Lifetime return-to-base
2 years onsite (UK only)

COMPLIANCES: REACH

ORDER PART CODE: VFM-DP [SAP: 3951893]

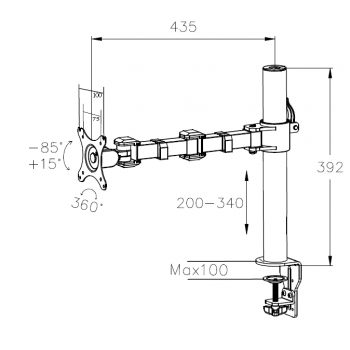

vfm-dp_dims
