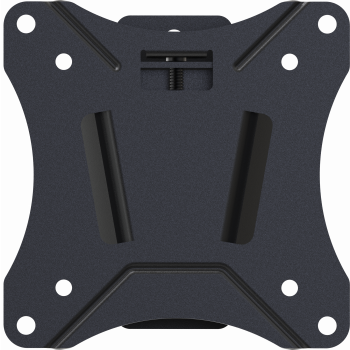

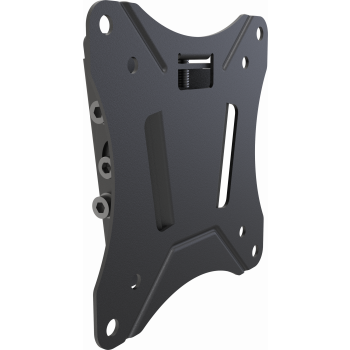

Tilting Monitor Wall Mount 100×100
VFM-W1X1Tv2
EU SAP: 4754703
US SAP: 13445539
VESA Wall Mount for LCD Monitors
Fits displays with 75 x 75 and 100 x 100mm mounting holes
For 10-34″ Displays
Locking anti-theft screw
Tilt adjustment: up: 3° / down: 12°
Thumbscrews for fixing display
Portrait or Landscape
This Vision Flat-Panel Mount (VFM) mount is quick and easy to install. It fits any flat-panel LCD screen which uses the common VESA 100 x 100 mm apart. Most desktop monitors use this mounting pattern making it perfect for office applications.

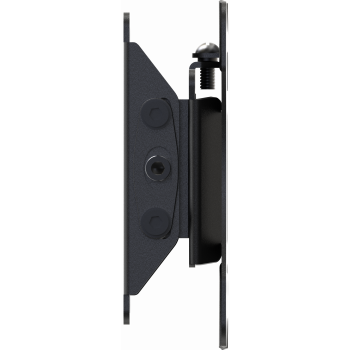

Tilt
15° of tilt adjustment for applications where the display is fixed up high.
SWL 25 kg(55lb)
Most desktop monitors are lightweight, but interactive displays and kiosk touch-panels are much heavier. This mount can easily support most monitors from 10″ to 34″.
Thumbscrews
The screws included to fix the display are thumbscrews for fast tool-free assembly.
Secure
Once in place a locking screw is fitted to avoid theft.
Portrait
Mount the display portrait-style or landscape style as required.
Simple Installation

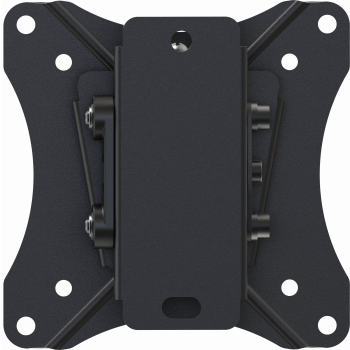

A proven 2-part design allows fast fixing, with slotted holes on the wall part allowing leveling adjustment after fixing.
Display Fixing Screws
Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.

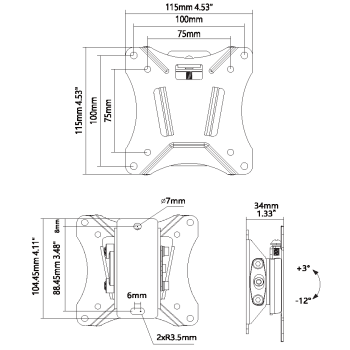

- PRODUCT DIMENSIONS
- 115 x 115 x 34 mm / 4.5″ x 4.5″ x 1.3″ (height x width x depth)
- PACKAGED DIMENSIONS
- 120 x 120 x 42 mm / 4.7″ x 4.7″ x 1.7″
- PRODUCT WEIGHT
- 0.31 kg (0.7 lbs)
- PACKAGED WEIGHT
- 0.42 kg (0.9 lbs)
- SAFE WORKING LOAD
- 25 kg (55 lbs)
- CONTRUCTION MATERIAL
- Steel
- COLOUR
- Black
- VESA SIZES
- 100 × 100 mm
75 x 75 mm
- ACCESSORIES INCLUDED
- 4 x M4 25 mm (1″) screw
4 x M5 12 mm (0.5″) screw
4 x M5 25 mm (1″) screw
- WARRANTY
- Lifetime return-to-base
- COMPLIANCES
- REACH
- ORDER PART CODE
- VFM-W1X1Tv2 [EU SAP: 4754703 / US SAP: 13445539]
- Country of Origin
- China
