Tilting Flat-Panel Wall Mount 200×200

Part Number: SAP: EAN:
  • VESA Wall Mount for displays and TVs
  • Fits displays with 75 x 75, 100 x 100, 200 x 100, and 200 x 200 mm mounting holes For 30-55″
  • (subject to VESA pattern and weight limit)
  • Locking anti-theft screw
  • Tilt adjustment: up: 3°/ down: 12°
  • Thumbscrews for fixing display
  • Portrait or Landscape
Stock levels @ 20-November-24
  • Total 549
  • EU 467
  • UK 82
Training
Training
  • Share on
  • or

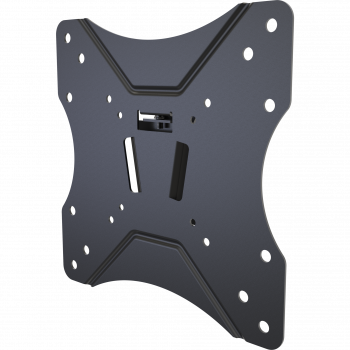

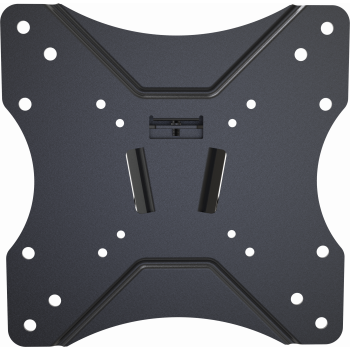

This Flat-Panel Mount (VFM) is quick and simple to install. It fits any display which uses a standard VESA mounting configuration up to VESA 200 x 200 mm. It also supports TVs which have mounting points 200 mm wide x 100 mm tall. Suited for mounting professional displays in the office, or mounting a TV at home.

Features

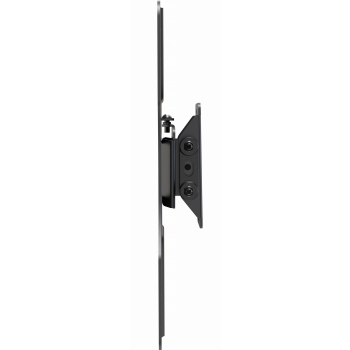

  • Tilt

    15° of tilt adjustment for applications where the display is fixed up high.

  • SWL 25 kg (55 lb)

    Most desktop monitors are very lightweight, but interactive displays and kiosk touch-panels are much heavier. This product can easily support most monitors from 30″ to 55″ subject to VESA pattern and weight limit.

  • Thumbscrews

    The screws included to fix the display are thumbscrews for fast tool-free assembly.

  • Secure

    Once in place a locking screw is fitted to avoid theft.

  • Portrait

    Mount the display portrait-style or landscape style as required.

  • Simple Installation

    A proven 2-part design allows fast fixing, with slotted holes on the wall part allowing leveling adjustment after fixing.

  • Display Fixing Screws

    Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.

Videos

Related

Specifications

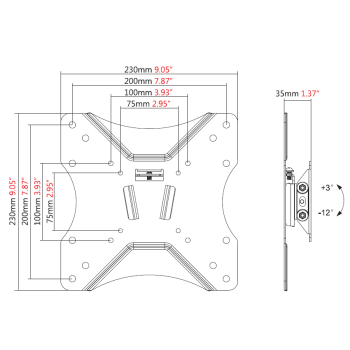

  • PRODUCT DIMENSIONS

    230 x 230 x 35 mm / 9.1″ x 9.1″ x 1.4″ (height x width x depth)

  • PACKAGED DIMENSIONS

    239 x 239 x 45 mm / 9.4″ x 9.4″ x 1.8″

  • PRODUCT WEIGHT

    0.83 kg (1.8 lbs)

  • PACKAGED WEIGHT

    1.12 kg (2.47 lbs)

  • SAFE WORKING LOAD

    25 kg (55 lbs)

  • CONTRUCTION MATERIAL

    Steel

  • COLOUR

    REACH

  • VESA SIZES

    200 × 200 mm
    200 x 100 mm
    100 × 100 mm
    75 x 75 mm

  • ACCESSORIES INCLUDED

    4 x M4 25 mm (1″) screw
    4 x M5 12 mm (0.5″) screw
    4 x M5 25 mm (1″) screw
    4 x M6 12 mm (0.5″) screw
    4 x M6 25 mm (1″) screw
    4 x M8 16 mm (0.6″) screw
    4 x M8 25 mm (1″) screw

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    RoHS

  • ORDER PART CODE

    VFM-W2X2TV2 [SAP: 4754704]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015
