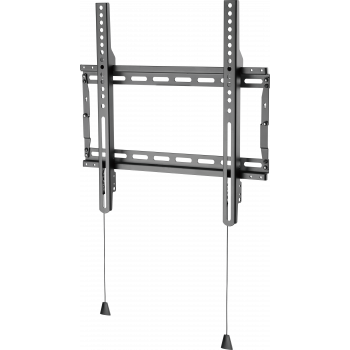

Fixed Flat-Panel Wall Mount 400×400
Key Points
- Non-tilting Wall Mount for large-format flat panels 32-65"
- (subject to VESA pattern and weight limit)
- Mounting points up to 400 (wide) x 400 mm (tall) apart
- Light Duty 60 kg / 132 lb SWL
- Lockable
- Total 43
- EU 43
- 500 EU @ 06-Dec-24 UK @ 13-Dec-24
Videos
Training
Introduction
Vision’s VFM-W4X4V/2 wall-mount for large-format flat-panels is designed for price-sensitive installations where no fancy features are required. To hit the right price point and ease of installation, we’ve simplified the design and engineered down the cost by reducing the amount of materials used, but without compromise on robustness and reliability.
It fits any flat-panel LCD or LED screen from 32- to 65-inch with rear mounting holes up to 400x400mm apart with a maximum weight 60kg. Everything an installer needs to put the display on the wall is included in the box.
Features
-
Flexible installation
The VFM-W4X4V/2 mount is fast to fix, thanks to a proven design with slotted holes on the horizontal part to allow easy fix to stud wall and side-to-side adjustment.
-
Everything included for installation
Vision puts everything the installer needs in the VFM-W4X4V/2 pack, including a load of M5, 6 and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
-
Safe Working Load of 60kg
The VFM-W4X4V/2 mount supports flat-panel displays weighing up to 60kg (132 lbs).
-
Fits Displays of 32-to 65-inch
Fits most displays sized from 32- to 65-inch, subject to VESA pattern and weight. Curved screens are not supported by this mount.
-
Meets ADA Regulations
The slim design holds the display just 29 mm (1.1-inch) off the wall, which not only looks better, reduces snagging and enables a higher safe working load rating, as well as meeting ADA regulations.
-
Folding Frame
The part that fixes to the wall comes pre-assembled to reduce fiddly assembly. It unfolds in seconds to deploy.
-
Latches in Place
Once in place locking strips slide up to prevent the assembly being lifted off the bracket by opportunistic thieves. Quick-release cords pull down to unlatch.
-
Non-Tilt
Strength comes from a simpler non-tilting design.
-
Open Architecture
The open centre of the wall plate allows cables to be fed into the wall easily, all completely hidden behind the display.
-
Lockable
Holes are in place to secure the display with a padlock (not included).
Videos
Related
-
1x Tilting Flat-Panel Wall Mount 400×400Stock: 333VFM-W4X4TV/2 / SAP: 6333311
-
1x Display Wall Mount VESA 600x400Stock: 229VFM-W6X4V/2 / SAP: 6333312
-
1x Tilting Flat-Panel Wall Mount 200×200Stock: 577VFM-W2X2TV2 / SAP: 4754704
-
1x Tilting Flat-Panel Wall Mount 400×400Stock: 333VFM-W4X4TV/2 / SAP: 6333311
-
1x Display Wall Mount VESA 600x400Stock: 229VFM-W6X4V/2 / SAP: 6333312
Specifications
-

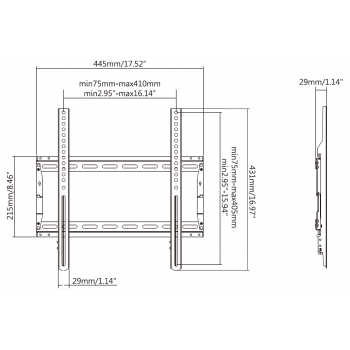

PRODUCT DIMENSIONS
445 x 431 x 29 mm / 17.5″ x 17.0″ x 1.1″ (width x height x depth)
-
PACKAGED DIMENSIONS
450 x 87 x 64 mm / 17.7" x 3.4" x 2.5"
-
PRODUCT WEIGHT
1.5 kg (3.3 lbs)
-
PACKAGED WEIGHT
1.66 kg (3.67 lbs)
-
SAFE WORKING LOAD
60 kg (132 lbs)
-
CONTRUCTION MATERIAL
Cold-rolled Steel 2 mm (0.08")
-
COLOUR
Powdercoated Black
-
VESA SIZES
400 x 400 mm
400 x 300 mm
400 x 200 mm
300 x 400 mm
300 x 300 mm
200 x 400 mm
200 x 300 mm
200 x 200 mm -
ACCESSORIES INCLUDED
4 x M5 14 mm screw
4 x M6 14 mm screw
4 x M6 30 mm screw
4 x M8 30 mm screw
4 x M8 50 mm screw -
WARRANTY
Lifetime return-to-base
-
COMPLIANCES
RoHS, ADA (Americans with Disability Act) Compliant
-
ORDER PART CODE
VFM-W4X4V/2 [SAP: 6333305]
-
Country of Origin
China
-
ISO
ISO 9001:2015
