TC3 Table Faceplate Pull-Up Module

TC3 PULLUP EU SAP: 4875952 US SAP: 13445532

Two cables can be fitted to each module
Any cable can be fitted, including cloverleaf or figure-8 power cables
Smooth weight-assisted retraction

This module is part of Vision’s table-mounted Techconnect family.  It allows cables to be pulled up and plugged in so users can get on with their presentation.

Two Cables

Two cables can be fitted to each module. The TC3 SURRTB table faceplace can accommodate up to nine modules.

Maximum Cable Diameter

Cables up to 7.8 mm (0.3″) in diameter can be used.

Smooth Retraction

The diameter of the holes are 11 mm (0.43″) to allow cables to slide smoothly.

Weights included

Cable weights are included which assist it pulling the cable home.

Cable Stops

To prevent thin cables falling through velcro wraps are included to wrap around the cable.

  • QUANTITY OF CABLES SUPPORTED
  • 2
  • MAXIMUM CABLE DIAMETER
  • 7.8 mm (0.3")
  • REQUIRED MODULES SPACES
  • 1
  • PACKAGED WEIGHT
  • 0.18 kg (0.40 lbs)
  • PACKAGED DIMENSIONS
  • 75 x 53 x 25 mm / 2.95" x 2.09" x 0.98" (Length x Width x Depth )
  • Country of Origin
  • China

Product PDF

TC3_PULLUP [EN]

PDF 437.03 KB
Download


Product Images

ZIP 8.92 MB
Download

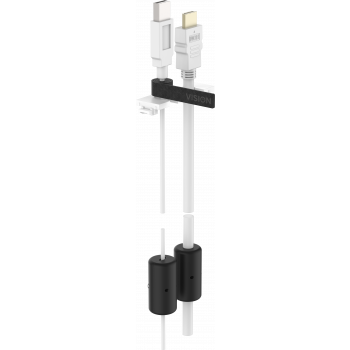

Product Images

PNG 1.58 MB
Download

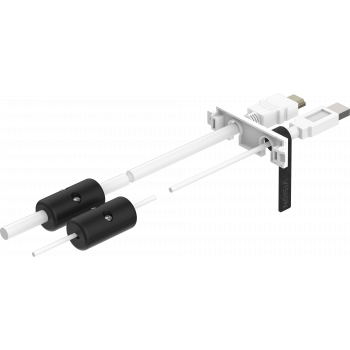

Rear angle

PNG 1.30 MB
Download

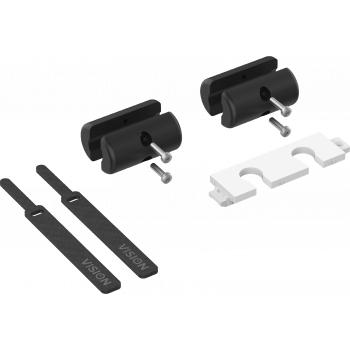

Parts included

PNG 478.34 KB
Download

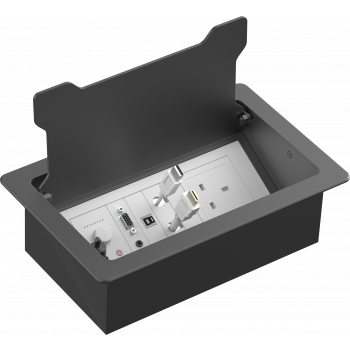

Open

PNG 5.75 MB
Download

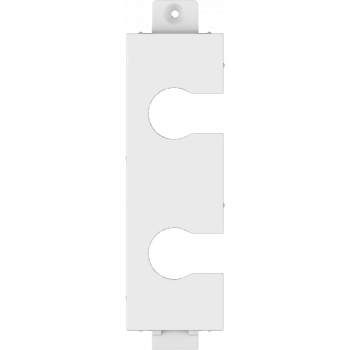

Image 1

PNG 105.43 KB
Download

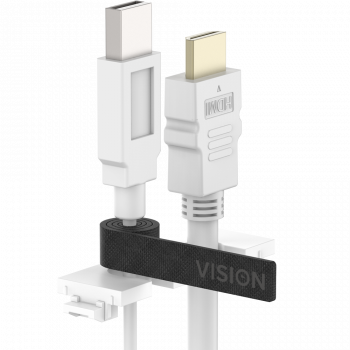

Square
