Flat-Panel Wall Arm 200x200

Part Number: SAP: EAN:

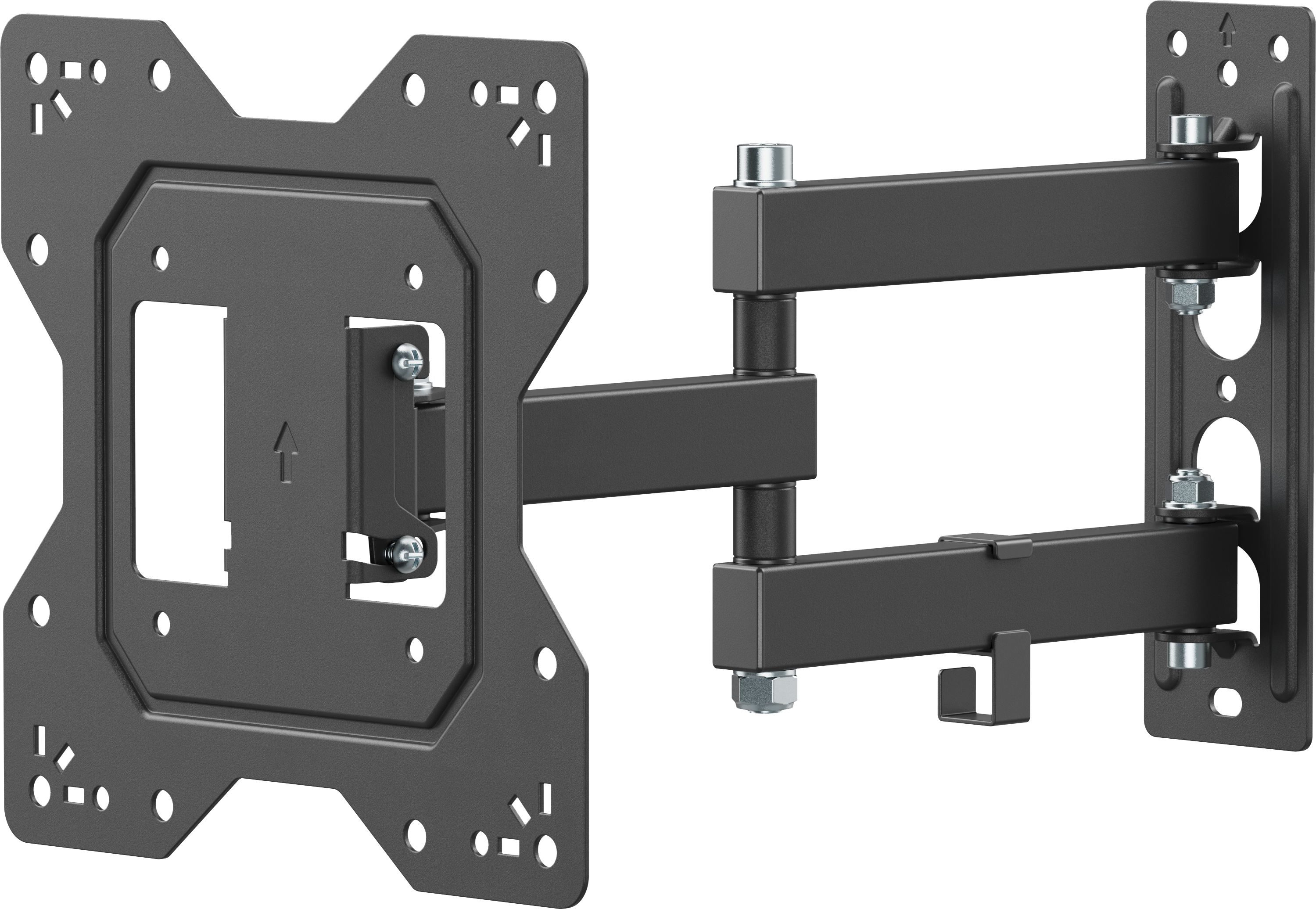

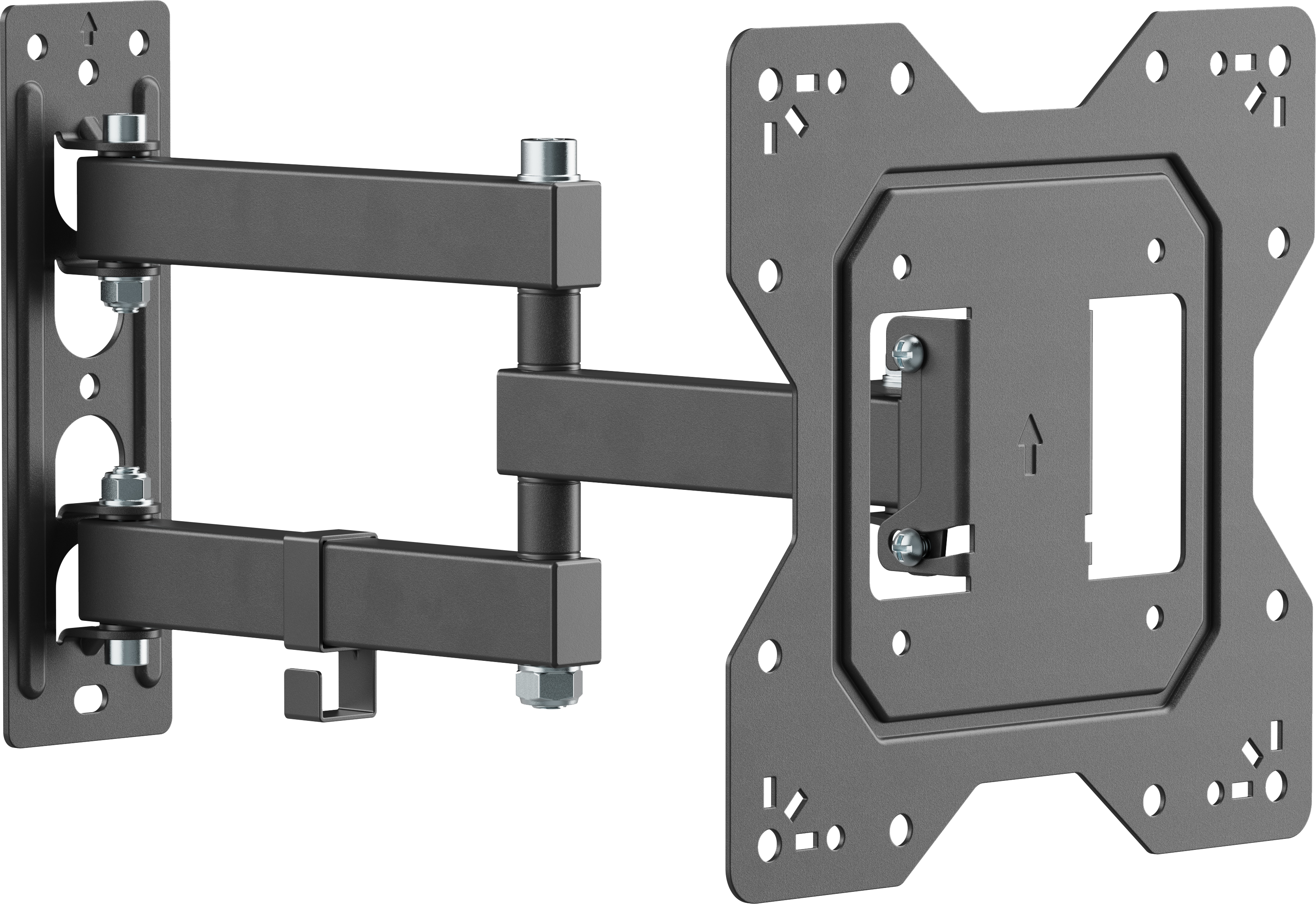

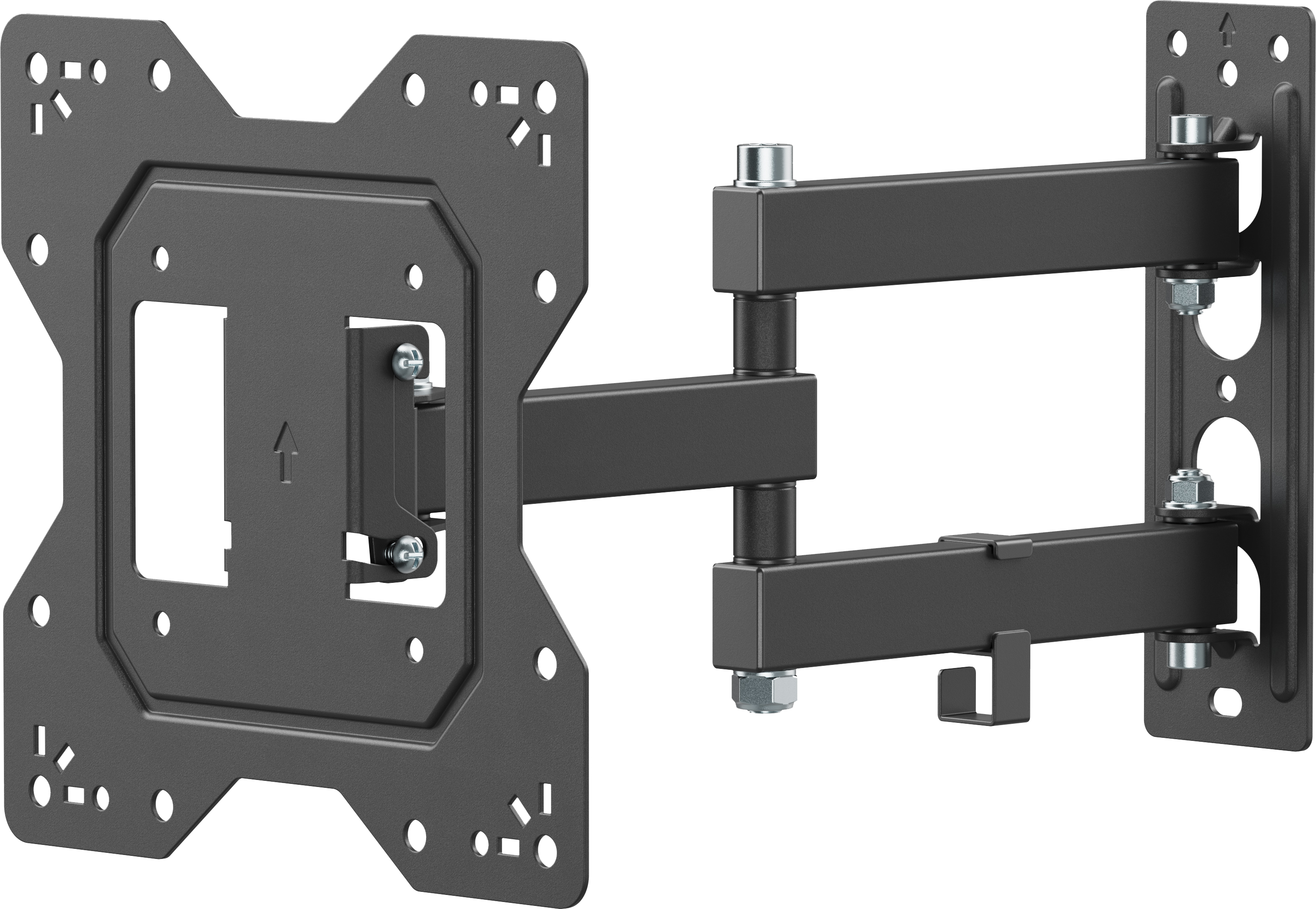

  • Double-articulated wall mount for flat panels
  • Supports displays from 20" to 50"
  • SWL up to 25 kg / 55 lbs
  • Reach 56-378 mm /2.2"-15.0″
  • Black
Stock levels @ 07-October-24
  • Total 157
  • EU 137
  • UK 20
Incoming stock ETA
  • 504 EU @ 14-Oct-24 UK @ 21-Oct-24
Incoming transfer ETA
  • 8 UK @ 10-Oct-24
Training
Training
  • Share on
  • or

Vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA2X2/3 fits any flat-panel LCD or LED screen which has 100 x 100 mm, 200 x 200 mm, or 200 x 100 mm  rear mounting holes.

Features

  • Up to 50"

    Most displays up to 50" use VESA 100 or 200 mounting points, so the WA2X2 fits the majority of displays up to this size. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

  • Fast Installation

    The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with two bolts.

  • SWL 25 kg

    This mount has a "safe working load" of 25 kg (55 lb). The single-arm design makes this mount especially flexible.

  • Cable Management

    An included clip keeps cables tidy behind the TV.

  • Tilt and Swivel

    -3° up and 10° down tilt adjustment, and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.

  • VESA

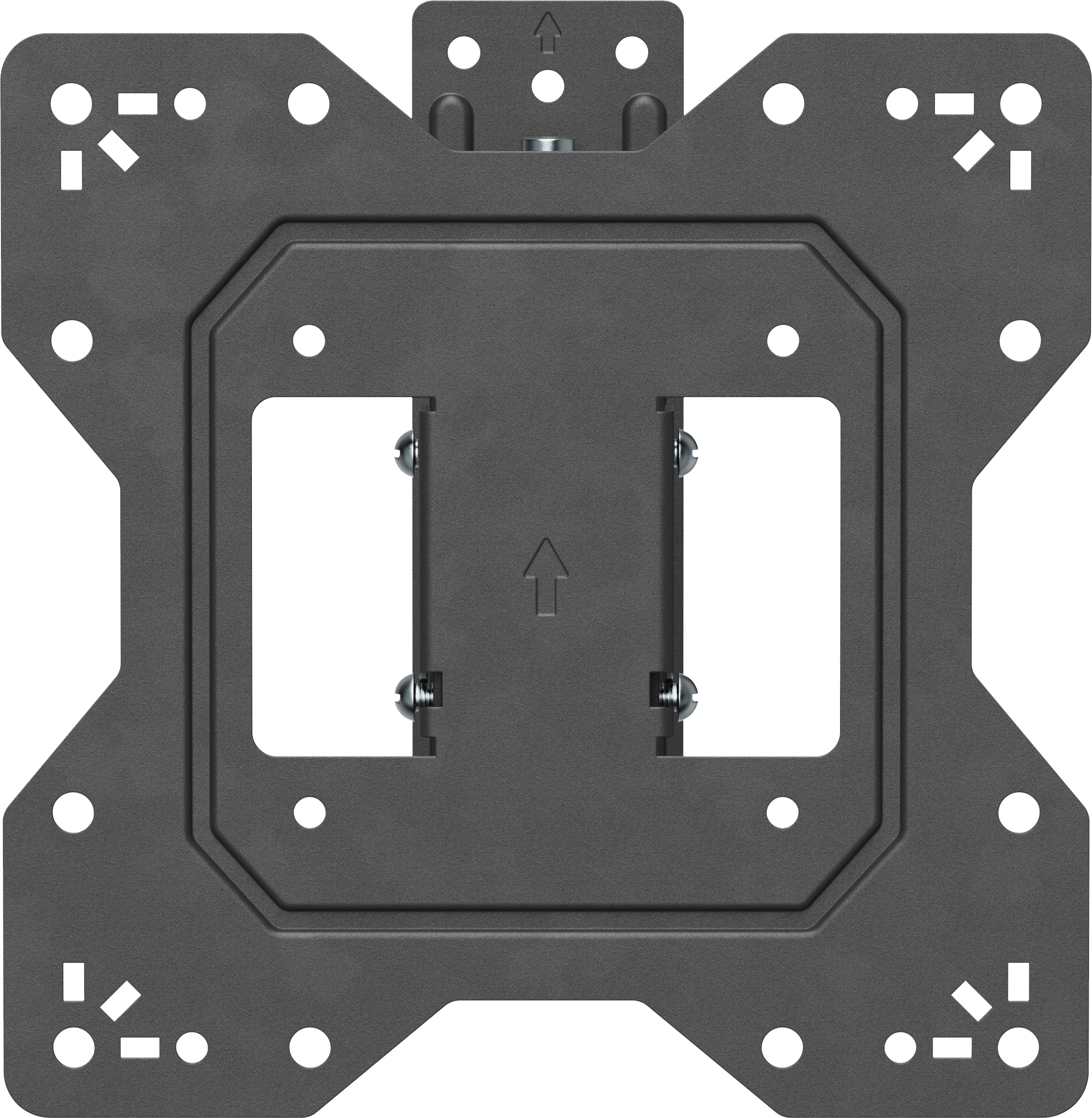

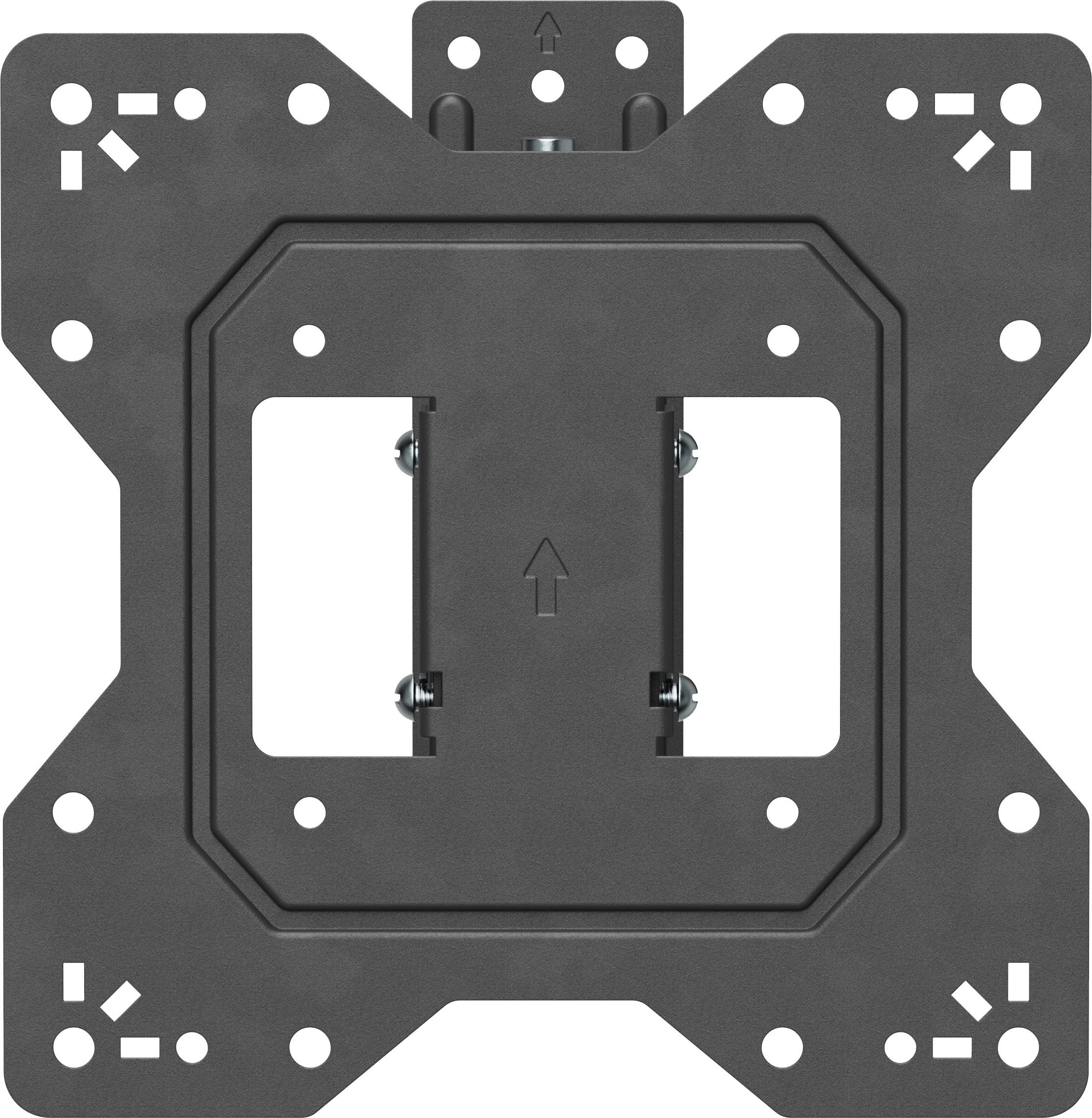

    The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel. Holes 200 x 200 mm apart are known as VESA 200 and will suit this mount. This product also fits displays with smaller VESA sizes listed below. This product also fits displays with smaller VESA sizes listed in the specifications.

  • Thumbscrews

    Thumbscrews are used to fix the display to help speed up the installation of this mount.

Videos

Related

Specifications

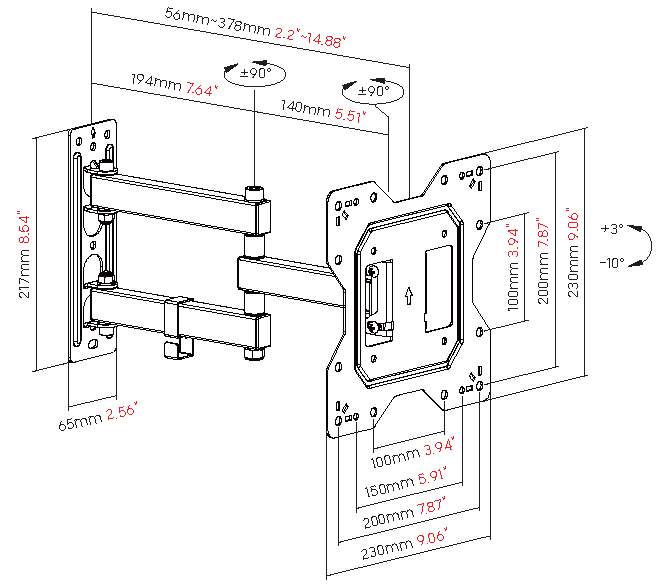

  • PRODUCT DIMENSIONS

    see image

  • PACKAGED DIMENSIONS

    295 x 238 x 65 mm / 11.6" x 9.37" x 2.5" (length x width x height)

  • PRODUCT WEIGHT

    1.8 kg (4.0 lbs)

  • PACKAGED WEIGHT

    2.0 kg (4.4 lbs)

  • SAFE WORKING LOAD

    25 kg (55 lbs)

  • CONTRUCTION MATERIAL

    Wall Plate: 2.5 mm / 0.098" steel
    VESA Plate: 1.8 mm / 0.071" cold-rolled steel
    Arms: 1.2 mm / 0.047 cold-rolled steel
    Arm Tube Size: 30 x 20 mm / 1.2" x 0.8"

  • COLOUR

    Black

  • VESA SIZES

    200 × 200 mm
    200 x 100 mm
    100 × 100 mm

  • ACCESSORIES INCLUDED

    4 x M6 14 mm thumb screws
    4 x M8 20 mm thumb screws

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    RoHS, REACH

  • ORDER PART CODE

    VFM-WA2X2/3 [SAP: 6230135]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015
