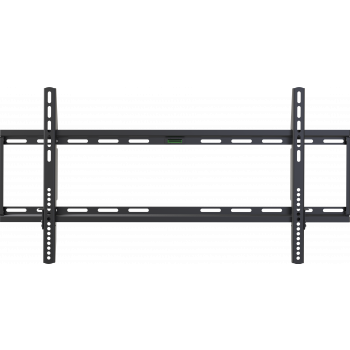

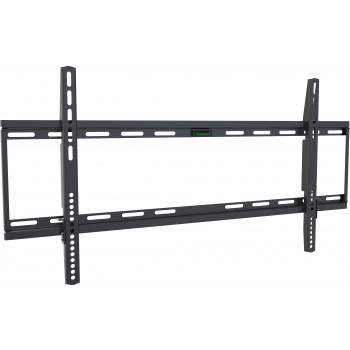

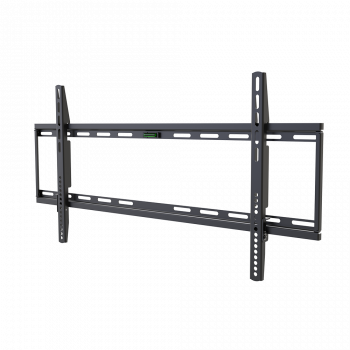

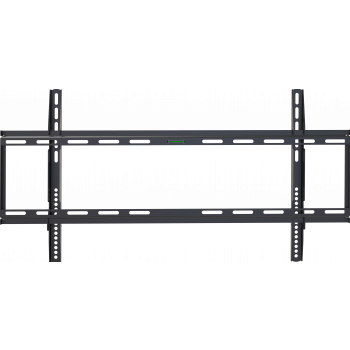

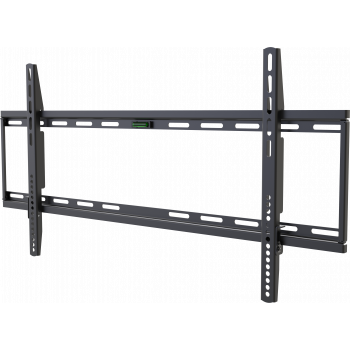

Flat-Panel Wall Mount 800×400

VFM-W8X4V EU SAP: 4991750 US SAP: 13557606

Non-tilting Wall Mount for large-format flat panels 47-75″
(subject to VESA pattern and weight limit)
Mounting points up to 800 (wide) x 400 mm (tall) apart
Light Duty 75 kg / 165 lb SWL

Vision’s Vision Flat-panel Mount – Wall range is flexible and includes everything you need to get the display on the wall. The VFM-W8X4V fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 400 mm tall apart. It has a simple design for price-sensitive applications.

SWL 75kg

Vision engineered the cost down by using less material, but it can still support displays weighing up to 75 kg / 165 lb.

Everything Included

Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.

For 37-70" Displays

Fits most displays from 37-70″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.

Meets ADA Regulations

The thin design holds the display just 30 mm / 1.2″ off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.

Flexible

A proven design allows fast fixing. Slotted holes on the horizontal part allow easy fixing to stud walls, and side-to-side adjustment.

Secure

Once in place locking strips slide up to prevent the assembly being lifted off the bracket by opportunistic thieves.

Non-Tilt

Strength comes from a simpler non-tilting design.

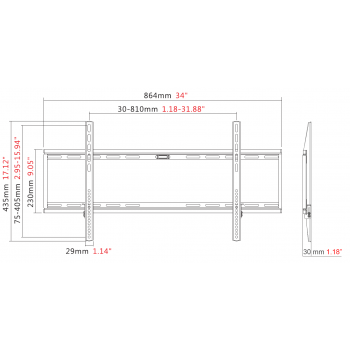

  • PRODUCT DIMENSIONS
  • 864 x 435 x 30 mm / 34.0″ x 17.1″ x 1.2″ (width x height x depth)
  • PACKAGED DIMENSIONS
  • 895 x 120 x 45 mm / 35.2" x 4.7" x 1.8"
  • PRODUCT WEIGHT
  • 2.21 kg (4.87 lbs)
  • PACKAGED WEIGHT
  • 2.5 kg (5.5 lbs)
  • SAFE WORKING LOAD
  • 75 kg (165 lbs)
  • CONTRUCTION MATERIAL
  • Cold-rolled Steel 2 mm (0.08")
  • COLOUR
  • Powdercoated Black
  • VESA SIZES
  • 800 x 400 mm
    600 x 400 mm
    400 x 400 mm
    400 x 200 mm
    300 x 300 mm
    200 x 200 mm
  • ACCESSORIES INCLUDED
  • 4 x M5 14 mm screw
    4 x M6 14 mm screw
    4 x M6 30 mm screw
    4 x M8 30 mm screw
    4 x M8 50 mm screw
  • WARRANTY
  • Lifetime return-to-base
  • COMPLIANCES
  • RoHS, ADA (Americans with Disability Act) Compliant
  • ORDER PART CODE
  • VFM-W8X4V [EU SAP: 4991750 / US SAP: 13557606]
  • Country of Origin
  • China
