Flat-Panel Wall Mount 800×400

Part Number: SAP: EAN:
  • End of Life April 2022 Replaced by VFM-W8X6
  • Wall Mount for large-format flat panels with mounting points up to 800 x 400mm apart
  • Heavy Duty 130kg SWL for Interactive Flat Panels
  • Locking anti-theft mechanism
Stock levels @ 24-October-25
  • Total 0
  • Share on
  • or

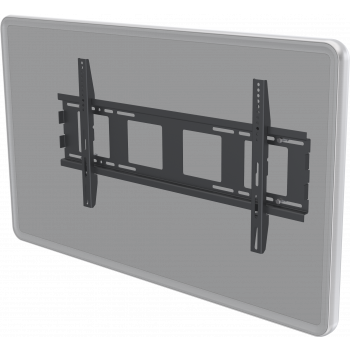

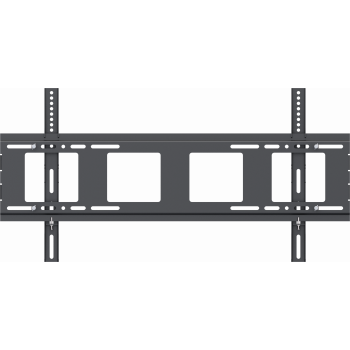

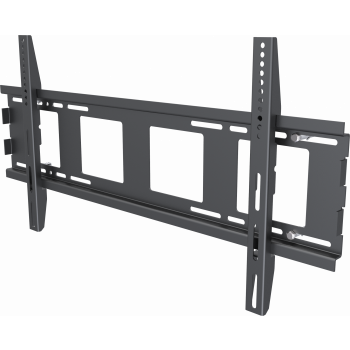

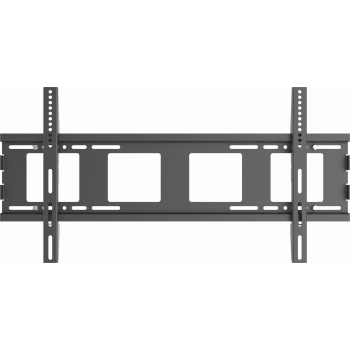

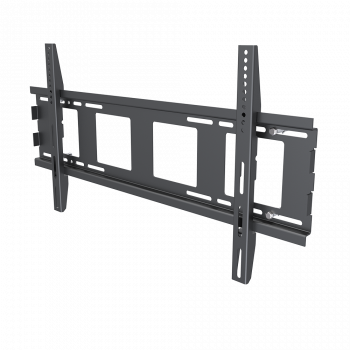

Vision’s Vision Flat-Panel Mount range is tough and flexible. The VFM-W8X4 fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 400mm tall apart.

Features

  • SWL 130kg

    Interactive flat panels are large and very heavy. Vision’s VFM-W8x4 uses heavy gauge 3mm sheet metal to take the weight of these displays.

  • Universal

    It fits most panels from 47-90″, including: Promethean’s ActivPanel 65, 75, and the 86″ models. Note: excludes 70″ models which use 400 x 600. Sahara’s Clevertouch range up to and including the 75″ Microsoft’s 55″ Surface Hub which uses 400 x 400mm mounting points.

  • Shallow

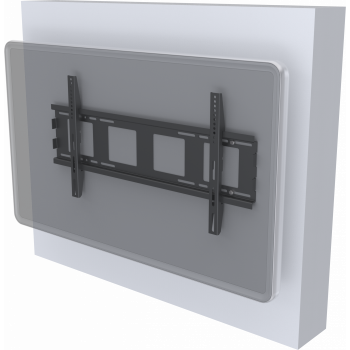

    The thin design holds the display close to the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.

  • Simple Installation

    A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.

  • Secure

    Once in place locking screws are fitted to prevent the assembly being lifted off the wall bracket.

Specifications

  • PRODUCT DIMENSIONS

    850 x 424 x 36 mm / 33.5″ x 16.7″ x 1.4″ (height x width x depth)

  • PACKAGED DIMENSIONS

    870 x 235 x 50 mm / 34.5″ x 9.2″ x 2.0″

  • PRODUCT WEIGHT

    4.2 kg (9.3 lbs)

  • PACKAGED WEIGHT

    4.4 g (9.7 lbs)

  • SAFE WORKING LOAD

    130kg (286 lbs)

  • CONTRUCTION MATERIAL

    Steel

  • COLOUR

    Black

  • VESA SIZES

    800 x 400 mm / 31.5″ x 15.7″
    600 × 400 mm / 23.6″ x 15.7″
    500 x 400 mm / 19.7″ x 15.7″
    400 × 400 mm / 15.7″ x 15.7″ (for 55” Microsoft Surface Hub)
    400 x 300 mm / 15.7″ x 11.8″
    400 × 200 mm / 15.7″ x 7.9″
    300 × 400 mm / 11.8″ x 15.7″
    300 × 300 mm / 11.8″ x 11.8″
    200 × 400 mm / 7.9″ x 15.7″
    200 × 200 mm / 7.9″ x 7.9″

  • ACCESSORIES INCLUDED

    4 x M5 16 mm screw
    4 x M6 16 mm screw
    4 x M6 25 mm screw (included from Jul 2018)
    4 x M8 16 mm screw
    4 x M8 25 mm screw (included from Jul 2018)

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    RoHS

  • ORDER PART CODE

    VFM-W8X4 [SAP: 3782117]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015
