Height-Adjustable Display Cart 50kg
VFM-F20
EU SAP: 4818836
US SAP: 13445518
NEW

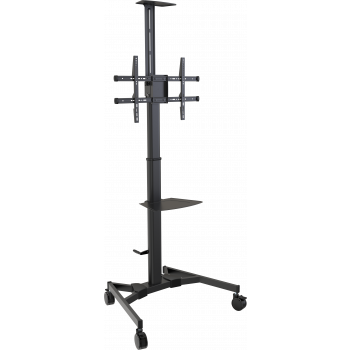

Portable floorstand for displays up to 50 kg (110 lb)
Fits displays with VESA sizes up to 600 x 400 mm
For 37-70″ Displays
Display rotates through 90°
Height adjustable by crank hand
Large 4″ wheels
Shelves included
Vision’s Flat-Panel Mount (VFM) Carts are constructed from commercial-grade heavy-duty steel. They are easy for one person to move, and have a hand crank to adjust height once the display is in position. These attractive floorstands are perfect for AV rental, event centers, healthcare, schools, or any application where large format displays are shared between meeting areas.
SWL 50 kg (110 lb)
The robust steel frame supports displays weighing up to 50 kilograms. For heavier displays choose the VFM-F25.
Thumbscrews
The screws included to fix the display are thumbscrews for fast tool-free assembly. Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.
37-70″ Displays
The recommended size range is also influence by the weight of the display and the mounting hole dimensions. Any display weighing less than 50 kg and with a VESA pattern of up to 600 x 400 mm can fit this display.
Rotate to Portrait
Grab the screen and rotate it; this cart is perfect for interactive displays like the Samsung Flip which re-orients the screen to portrait-style when you turn it.
Massive Wheels
Quality 4″ (100 mm) castors glide over any bumps, making the cart easy to pull even on deep carpet. Big wheels also reduce vibration of your expensive AV equipment.
Adjustable Height
Crank the handle at the back of the column to adjust the display height by 400 mm (15.7″). Gearing makes it easy to turn.
Tilt
15° of tilt adjustment to avoid reflection from overhead lights.
Shelves Included
Two shelves come with the cart; one for a video conference camera above the display, and another below the display for laptops etc. Both are height adjustable.

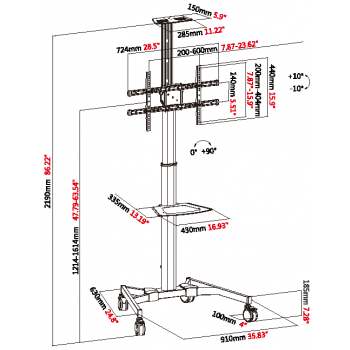

- PRODUCT DIMENSIONS
- 910 x 683 x 1810~2210 mm / 35.8″ x 26.9″ x 71.3″~87″ (length x width x height)
- PACKAGED DIMENSIONS
- 1176 x 439 x 219 mm / 46.3″ x 17.3″ x 8.6″ (length x width x height)
- PRODUCT WEIGHT
- 24.5 kg (54 lbs)
- PACKAGED WEIGHT
- 27.5 kg (60.6 lbs)
- SAFE WORKING LOAD (SWL)
- 50 kg (110 lbs)
- SHELF SAFE WORKING LOAD
- 5 kg (11 lbs)
- CONTRUCTION MATERIAL
- Steel
- COLOUR
- Black Powercoating
- VESA SIZES
- 600 × 400 mm
400 × 400 mm
400 x 300 mm
400 × 200 mm
300 × 400 mm
300 × 300 mm
200 × 400 mm
200 × 200 mm
- ACCESSORIES INCLUDED
- 4 x M5 14 mm (0.6″) screw
4 x M6 14 mm (0.6″) screw
4 x M6 30 mm (1.2″) screw
4 x M8 30 mm (1.2″) screw
4 x M8 50 mm (2.0″) screw
- WARRANTY
- Lifetime return-to-base
- COMPLIANCES
- REACH
- ORDER PART CODE
- VFM-F20 [EU SAP: 4818836 / US SAP: 13445518]
- Country of Origin
- China
