Height-Adjustable Aluminium Display Cart 60 kg

/ SAP:
  • Premium Portable floor stand for displays up to 60 kg
  • Fits displays with VESA sizes up to 600 x 400 mm
  • For 31-80″ Displays subject to VESA pattern and weight limit
  • Display rotates to portrait
  • Height adjustable by hand crank
  • Premium 4″ wheels
  • Extra wide video bar shelf
Stock levels @ 11-July-24
  • Total 0
Incoming stock ETA
  • 100 EU @ 20-October-24 UK @ 25-October-24
  • Share on
  • or

The Vision F22 floor stand is like the standard F21 but elevates with a premium aluminium column and better components which enhance rigidity. It boasts a larger bottom shelf, suited to accommodating Zoom and Teams video bars. Height-adjustment is with a simple-to-use hand crank. It comes complete with all required components and offers an unparalleled lifetime warranty.

These elegant floor stands are ideal for AV rentals, event centres, meeting room facilities, boardrooms, schools, or any setting where large format displays are used across various meeting areas.

Features

  • SWL 60 kg (132 lbs)

    The premium aluminium and rigid steel frame can support displays that weigh up to 60 kilograms. For heavier displays choose the VFM-F27.

  • 31-80″ Displays

    The suitability of a stand is also determined by the weight of the display and the dimensions of the mounting points. Displays that weigh under 60 kg and have a VESA pattern up to 600 x 400 mm are compatible with this stand.

  • Rotate to Portrait

    This cart is ideal for users who require the ability to rotate their display 90 degrees.

  • Premium 4" Wheels

    The 4-inch (100 mm) casters ensure the cart glides easily over thick carpet and minimizes vibration to sensitive electronic equipment. All four wheels can be locked.

  • Adjustable Height

    Turn the crank handle located at the back of the column to adjust the display height by 400 mm (16 inches).

  • Tilt

    The VESA mount is adjustable and can be tilted downwards to prevent reflections from overhead lighting.

  • Conference Bar Shelf

    The generous bottom shelf, measuring 800 mm (32 inches) in width and 250 mm (10 inches) in depth, is designed to accommodate Teams or Zoom video bars beneath the display. It can also serve as a convenient place for laptops.

  • Camera Shelf

    The cart includes a small top shelf for a video conference camera above the display. Both shelves are height adjustable.

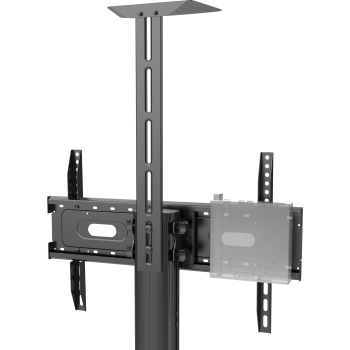

  • Mini PC Mount

    VESA100 mounting holes and M4 stand-offs are provided, allowing for attachment of a mini-PC, such as a Dell Optiplex or Intel NUC, to the VESA mount behind the display.

  • Cable Management

    Vision considers every detail! Included are stick-on cable clips that allow for discreet cable routing up the column.

Related

Specifications

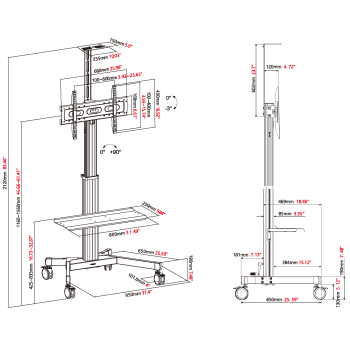

  • PRODUCT DIMENSIONS

    x x mm / 0″ x 0″ x 0″ (depth x width x height)

  • PACKAGED DIMENSIONS

    1315 x 520 x 245 mm / 51.8″x 20.5″x 9.6″ (length x width x height)

  • PRODUCT WEIGHT

    20.8 kg (45.9 lbs)

  • PACKAGED WEIGHT

    25.4 kg (56.0 lbs)

  • SAFE WORKING LOAD (SWL)

    60 kg (132 lbs)

  • SHELF SAFE WORKING LOAD

    5 kg (11 lbs)

  • CONSTRUCTION MATERIAL

    Aluminium, Steel

  • COLOUR

    Matt Black

  • VESA SIZES

    600 x 400 mm
    400 x 400 mm
    400 x 300 mm
    400 x 200 mm
    350 x 350 mm
    300 x 400 mm
    300 x 300 mm
    200 x 400 mm
    200 x 200 mm

  • ACCESSORIES INCLUDED

    4 x M5 14 mm screw
    4 x M6 14 mm screw
    4 x M6 30 mm screw
    4 x M8 30 mm screw
    4 x M8 50 mm screw
    8 x Cable Management Clips

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    RoHS, REACH
    Certification not held but complies with
    ISO 22881:2004
    BS EN 12527:1999
    BS EN 12531:1999

  • ORDER PART CODE

    VFM-F22 [SAP: 8628543]

  • Country of Origin

    China

Downloads

Product PDF

VFM-F22 (English)

(en)
110.76 KB

Images

VFM-F22 Medium Image Pack

(en)
468.69 KB

VFM-F22 Thumbnails Image Pack

(en)
60.94 KB

VFM-F22 Image Pack

(en)
4.67 MB
