Flat-Panel Desk Arm 100×100 Dual

Part Number: SAP: EAN:
  • End of Life November 2022 Replaced by VFM-DAD/4

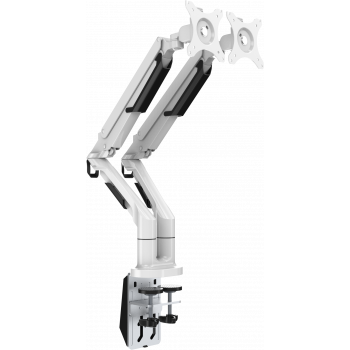

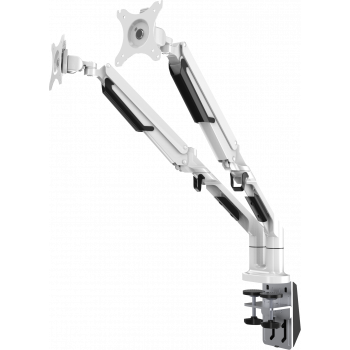

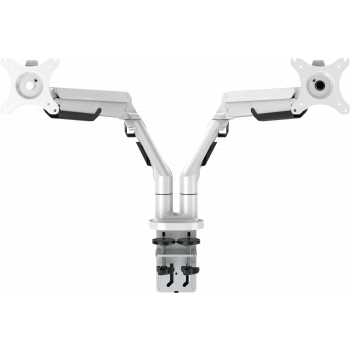

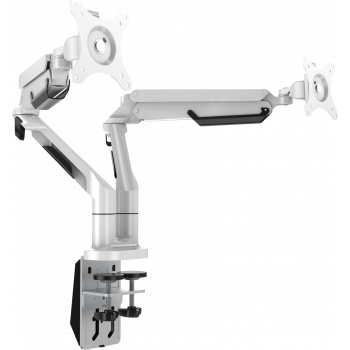

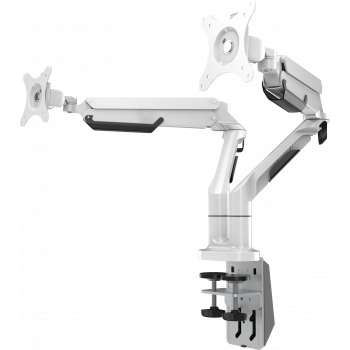

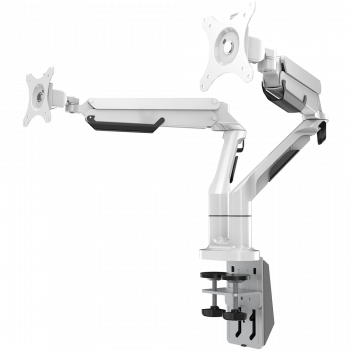

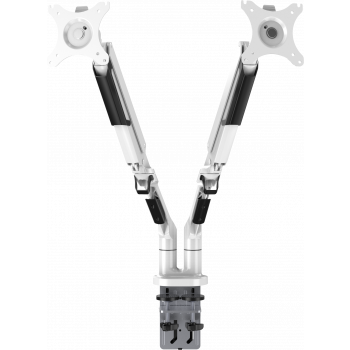

  • Double-articulated desk mount for two monitors up to 34″
  • Cable Management and adjustable dampers
  • Aluminium construction, White
  • Quick-Clamp
Stock levels @ 22-November-24
  • Total 0
  • Share on
  • or

The Vision Flat-Panel Mount – Desk range is tough and flexible. The VFM-DAD (desk arm dual) accommodates two flat-panel LCD or LED screens which have 100 x 100mm rear mounting holes; almost all computer monitors.

Features

  • Premium Construction

    Aircraft-grade aluminium arms are finished with a stylish anti-scratch surface.

  • Thumbscrews

    Thumbscrews are used to fix the display to help speed up the installation of this mount.

  • Quick Release

    The VESA plates attach to the rear of the displays then clip into position on the arm, making assembly fast and easy.

  • SWL 18 kg

    The VFM-DAD can support two monitors up to 18 kg (40 lbs) in total.

  • Up to 34″

    Fits screens that ranges from 10″ to 34″. If a larger displays have the correct mounting points and weighs less than the SWL this mount can support it safely.

  • Adjustable Dampers

    To allow for different loads the dampers can be tightened or loosened to make sure the display stays where it is when you let go of it.

  • Cable Management

    Clip on covers allow tidy cable routing.

  • Clamp or Grommet

    The VFM-DAD can be clamped or a fixing adaptor is included to bolt it to the table (requires drilling hole in table).

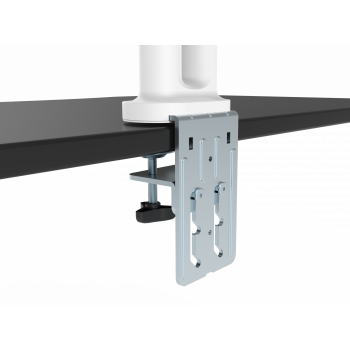

  • Quick Clamp

    The clamp has a quick-release to adjust quickly for varying table thicknesses as thin as 14 mm (0.44″).

  • Rotate to Portrait-Style

    Almost endless tilt, rotation, swivel, and height adjustment puts the display right where you need it.

  • Move independently

    Move each display up and down independently to get the right ergonomic setup.

  • Maximum Span

    The centres of the displays can be up to 1200 mm (47.2″) apart. The maximum height from the desk top to the centre of the screens is 510 mm (20.1″).

Specifications

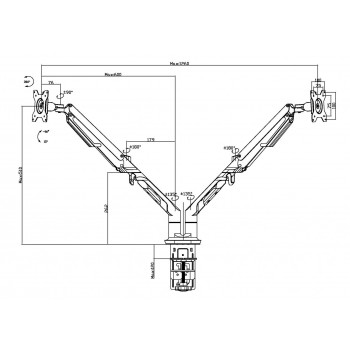

  • PRODUCT DIMENSIONS

    see image

  • PACKAGED DIMENSIONS

    422 x 325 x 143 mm / 16.6″ x 12.8″ x 5.6″ (length x width x height)

  • PRODUCT WEIGHT

    6.3 kg (13.9 lbs)

  • PACKAGED WEIGHT

    7.4 kg (16.3 lbs)

  • TOTAL SAFE WORKING LOAD

    9 kg (19.9 lbs)

  • CONTRUCTION MATERIAL

    Aluminium

  • COLOUR

    White

  • VESA SIZES

    100 × 100 mm / 3.9″ x 3.9″
    75 × 75 mm / 3.0″ x 3.0″

  • ACCESSORIES INCLUDED

    8 x M4 12mm screws
    8 x M5 12mm screws
    3 x M6 12mm screws

  • MINIMUM DISPLAY/LAPTOP WEIGHT

    1.4 kg / 3.1 lb

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    RoHS, REACH

  • ORDER PART CODE

    VFM-DAD3 [SAP: 4684961]

  • Country of Origin

    China
