Flat-Panel Desk Arm 100×100

/ SAP:
  • End of Life August 2021 Replaced by VFM-DA/4
  • Double-articulated desk mount for flat panels up to 34″
  • Cable Management and adjustable dampers
  • Premium Aluminium construction
Stock levels @ 22-September-23
  • Total 0
  • Share on
  • or

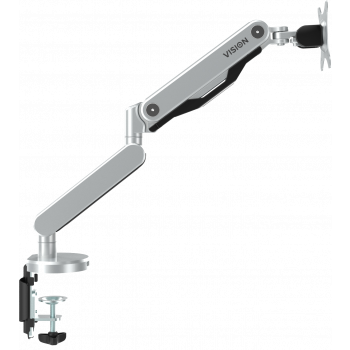

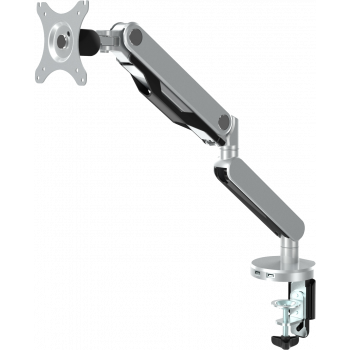

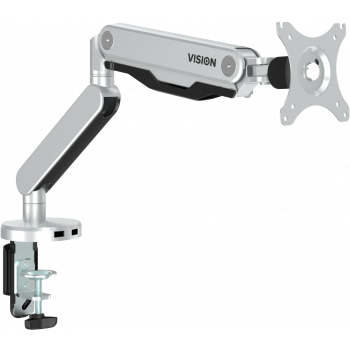

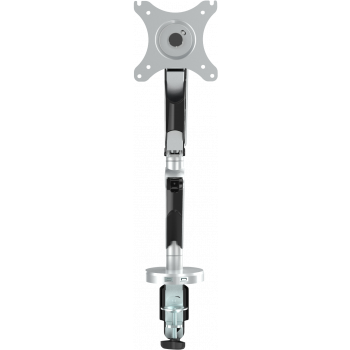

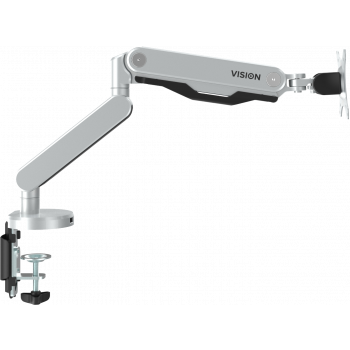

The Vision Flat-Panel Mount – Desk range is tough and flexible. The VFM-DA2 (desk arm) fits any flat-panel LCD or LED screen which has 100 x 100mm rear mounting holes – most computer monitors.

Features

  • SWL 9 kg

    The VFM-DA2 can support monitors up to 9 kg (20 lb).

  • Up to 34″

    Fits screens that ranges from 10″ to 34″. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

  • Adjustable Dampers

    To allow for different loads the dampers can be tightened or loosened to make sure the display stays where it is when you let go of it.

  • Cable Management

    Clip on covers allow tidy cable routing.

  • Clamp or Fix

    The VFM-DA2 can be clamped or a fixing adaptor is included to bolt it to the table (requires drilling hole in table).

  • Freedom of Movement

    Almost endless tilt, rotation, swivel, and height adjustment puts the display right where you need it.

  • Maximum Height

    The maximum height from the desk top to the centre of the screens is 390 mm (15.3″).

Specifications

  • PRODUCT DIMENSIONS

    see image

  • PACKAGED DIMENSIONS

    407 x 292 x 122 mm / 16.0″ x 11.5″ x 4.8″ (length x width x height)

  • PRODUCT WEIGHT

    3.0 kg / 6.6 lbs

  • PACKAGED WEIGHT

    3.8 kg / 8.4 lbs

  • SAFE WORKING LOAD

    9kg / 19.84 lbs

  • CONTRUCTION MATERIAL

    Aluminum

  • COLOUR

    Silver

  • VESA SIZES

    100 × 100 mm / 3.9″ x 3.9″

  • ACCESSORIES INCLUDED

    4 x M4 12mm screw
    4 x M5 12mm screw
    3 x M6 12mm screw
    2 x M6 10mm screw

  • WARRANTY

    Lifetime return-to-base

  • COMPLIANCES

    RoHS, REACH

  • ORDER PART CODE

    VFM-DA2 [SAP: 4291128]

  • Country of Origin

    China
