Telescopic Webcam Ceiling Mount

Part Number: SAP: EAN:
Stock levels @ 11-October-24
  • Total 124
  • EU 124
Training
  • Share on
  • or

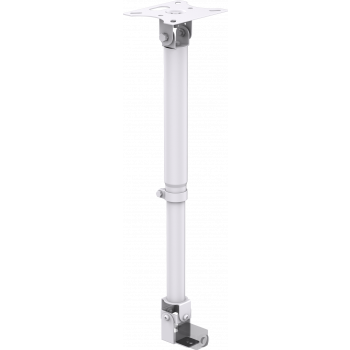

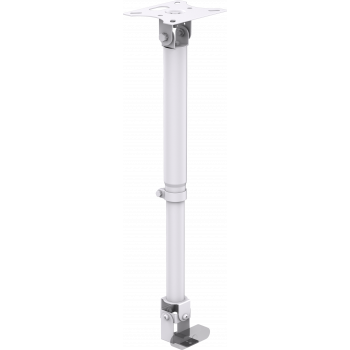

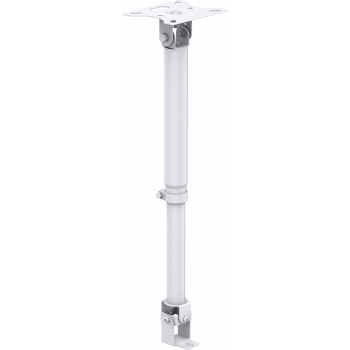

The TM-WEBCAM is a universal webcam ceiling bracket for mounting a USB camera safely to a ceiling. The telescopic design allows fast deployment and adjustment. It has a greater range than most other telescopic mounts.

There is a growing demand to mount USB cameras in the ceiling for meeting applications. For example Microsoft Whiteboard uses a ceiling-mounted camera to digitize writing on a physical whiteboard for collaboration.

Features

  • One-Person Installation

    An example of thoughtful design is the length adjustment clamp system which requires only one hand.

  • Flush-Mount Option

    The pole can be removed for “flush-mounting” the camera as close to the ceiling as possible.

  • Sloping Ceilings

    A top tilting mechanism is included which tilts to a full 90 degrees, allowing it to fix to the side of a ceiling joist. Or you can use the bracket as a boom fixed to a wall if need be.

  • Wall Boom Applications

    The bracket can alternatively be fixed horizontally to a wall to be used as a boom.

  • Telescopic

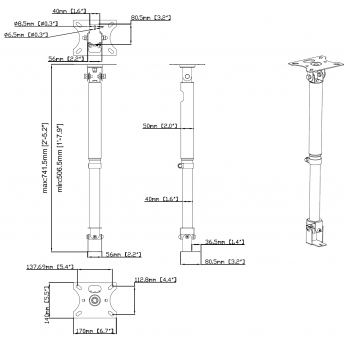

    The overall length is between 440-735 mm (17.3″ – 28.9″). Note: the length of this bracket cannot be extended.

  • Easy fit

    The webcam fixes using the standard tripod screw which is included.

  • Cable Management

    Just drop the cables down through the pole to terminate to the camera for a professional look. Cables are out of sight.

  • Tools Included

    A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.

  • Secure

    Quick-release mechanisms make life easier for thieves, so the TM-WEBCAM is secure and features security bolts.

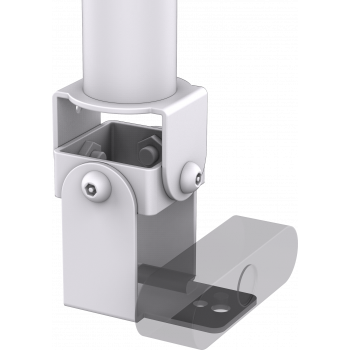

  • Camera Tilt

    The bottom bracket is adjustable so you can direct the camera where you need to.

  • Ceiling Trim Disc

    For applications where the pole drops down through a hole in a false ceiling, a plastic trim disc is included to tidy the hole.

Videos

Specifications

  • BOX DIMENSIONS

    393 X 150 X 80 MM / 15.47″ X 5.91″ X 3.15″

  • PACKAGED WEIGHT

    3 KG / 6.6 LBS

  • SAFE WORKING LOAD

    10KG / 22.1 LBS

  • COLOUR

    SATIN WHITE

  • ACCESSORIES INCLUDED

    1 x H50 Pin-Hex key
    1 x H50 power drill hex bit
    1 x 17mm (0.7″) Spanner
    4 x M8 50mm (2.0″) Ceiling Fixtures with rawl plugs
    1 x Ceiling Trim Disc
    1 x 1/4-20 UNC Screw 9 mm long
    1 x M6 12mm (0.47″) Screw

  • WARRANTY

    LIFETIME RETURN-TO-BASE

  • COMPLIANCES

    RoHS

  • ORDER PART CODE

    TM-WEBCAM [SAP: 5708369]

  • Country of Origin

    China

  • ISO

    ISO 9001:2015
