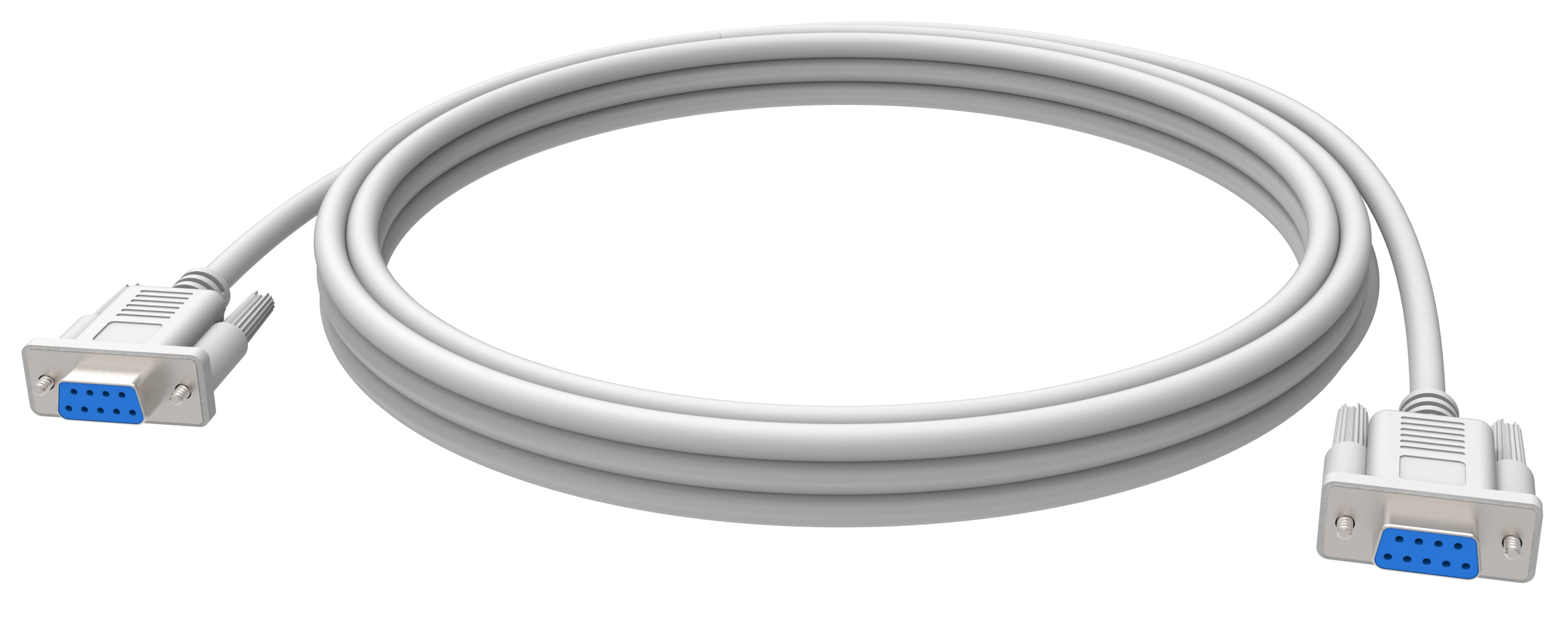

White 9-Pin RS-232 Serial Cable

  • Share on
  • or
  • 2m (6.5ft) End of Life August 2021
    SAP:
    • Total 0
  • 5m (16.4ft) End of Life August 2023
    SAP:
    • Total 0
  • 10m (32.8ft) End of Life December 2021
    SAP:
    • Total 0
  • 15m (49.2ft) End of Life August 2021
    SAP:
    • Total 0

Control systems for audio-visual and industrial applications use RS-232 which is a 2-way standard which allows the control system to send commands and receive feedback. RS-232 (and RS-485) uses serial cable which has 9-pin d-sub connectors which look like a VGA connector but instead of three rows of pins they only have two.

Features

Specifications

  • ORDER PART CODE

    [SAP: ]

  • Country of Origin

    China

White 9-Pin RS-232 Serial Cable 5m (16.4ft)

  • SHEATH

    PVC, outer diameter: 5 mm (0.20″)

  • CONDUCTOR THICKNESS

    28 AWG

  • SHIELD

    > 65% coverage braided shield

  • IMPEDANCE

    at 10 MHz, 75Ω (coaxial cable)

  • RESISTANCE

    20℃(Ω/1000 m) 237.25

  • PACKAGED WEIGHT

    0.23 kg (0.51 lb)

  • PACKAGED DIMENSION

    160 x 160 x 45 mm (6.3" x 6.3" x 1.8")

  • CONFORMITY

    CE, FCC, Retail packaging

  • NICKEL-PLATED CONNECTORS

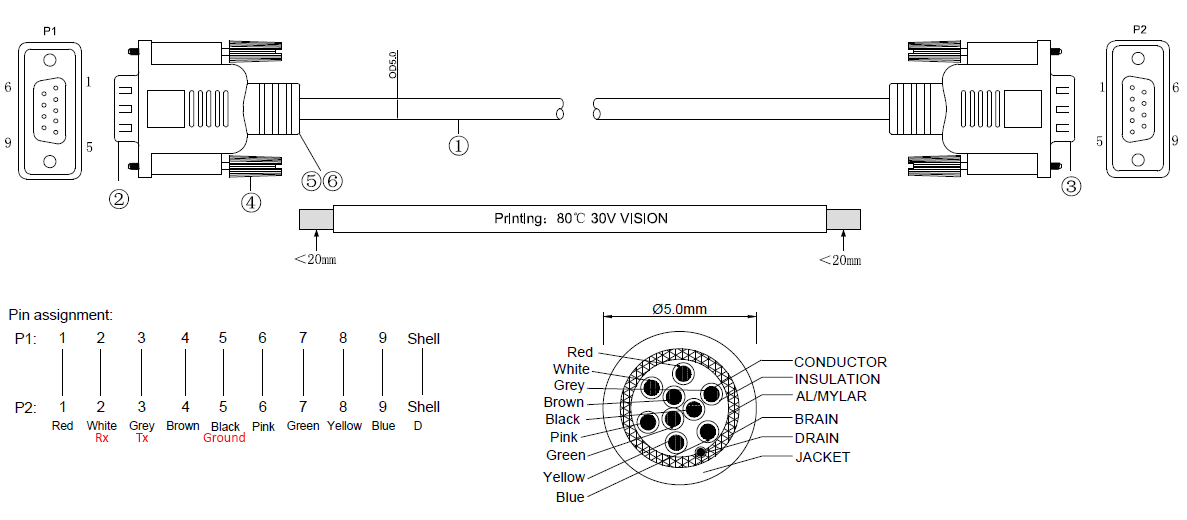

  • PINS WIRED STRAIGHT THROUGH (I.E. 1 TO 1, 2 TO 1, ETC)

  • DRAIN WIRE LAID BETWEEN ALUMINUM BRAID

  • AL-MG ALLOY WIRE OVERALL

  • ORDER PART CODE

    TC 5MS [SAP: 3265214]

  • Country of Origin

    China

White 9-Pin RS-232 Serial Cable 10m (32.8ft)

  • SHEATH

    PVC, outer diameter: 5 mm (0.20″)

  • CONDUCTOR THICKNESS

    28 AWG

  • SHIELD

    > 65% coverage braided shield

  • IMPEDANCE

    at 10 MHz, 75Ω (coaxial cable)

  • RESISTANCE

    20℃(Ω/1000 m) 237.25

  • PACKAGED WEIGHT

    0.45 kg (0.99 lb)

  • PACKAGED DIMENSION

    180 x 180 x 70 mm (7.1" x 7.1" x 2.8")

  • CONFORMITY

    CE, FCC, Retail packaging

  • NICKEL-PLATED CONNECTORS

  • PINS WIRED STRAIGHT THROUGH (I.E. 1 TO 1, 2 TO 1, ETC)

  • DRAIN WIRE LAID BETWEEN ALUMINUM BRAID

  • AL-MG ALLOY WIRE OVERALL

  • ORDER PART CODE

    TC 10MS [SAP: 3265216]

  • Country of Origin

    China
