Techconnect 50w Amplifier and Speakers
Key Points
- Extremely small 2 x 25 w (RMS) at 8 ohms Digital Amp
- 2 x Stereo inputs (Input 1 duplicated on front and rear)
- IR Remote control included
- Pair of 5.25" loudspeakers included
- Total 262
- EU 179
- UK 83
Introduction

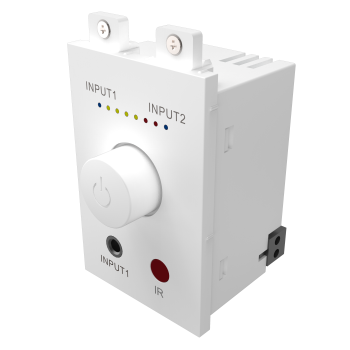

The Techconnect Amp module utilizes a low-impedance digital amplifier chip, allowing it to deliver a powerful 2 x 25 watts RMS (at 8 ohms) while conveniently fitting into the space of a double-space Techconnect module.
This makes it perfect for meeting spaces, classrooms, museums, and presentation suites where space is limited but high-quality audio performance is essential.
Features
-

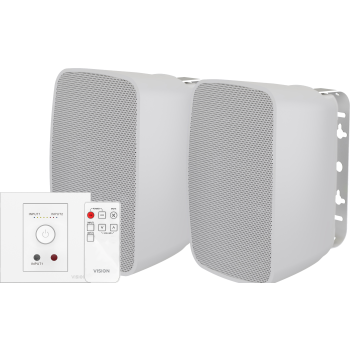

Loudspeakers Included

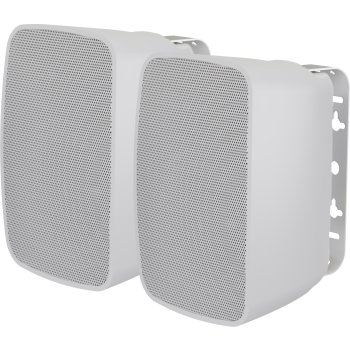

The TC3-AMP "plus" version comes with a pair of wall speakers included in the same carton. These speakers utilize a full-range 5.25" driver, ensuring clear and crisp audio reinforcement. Moreover, they are rated IP44, making them water-resistant and suitable for various environments.
-
Front Panel Input
Two Inputs are wired into the rear with removable phoenix connectors. Additionally, Input 1 is duplicated on the front panel using a minijack socket for added convenience. This "half-normalled" input automatically disconnects the rear terminal when in use, providing a user-friendly and versatile setup.
-
D-Class Amplifier
Digital amplifiers are energy-efficient as they consume minimal power when not amplifying audio signals. Even when operating at full volume, if there is no input signal, they effectively remain in an "off" state. Additionally, digital amplifiers generate less heat, eliminating the need for bulky heatsinks commonly found in traditional analog amplifiers.
-
Preset Memory
When power is activated, the Techconnect Amp automatically turns on and resumes the most recent settings as the default behavior. However, for hospitality applications such as hotel guest rooms, it can be configured to return to a preset input and level every time it is powered on. This feature ensures a consistent and customized experience for users in hospitality settings.
-
Tactile Dial
The product boasts a user-friendly and straightforward control interface, making it easy to operate. A long press on the dial powers the device on and off seamlessly. Additionally, a short press allows users to change the input. This intuitive design ensures a hassle-free user experience.
-

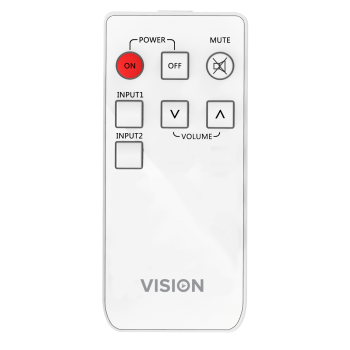

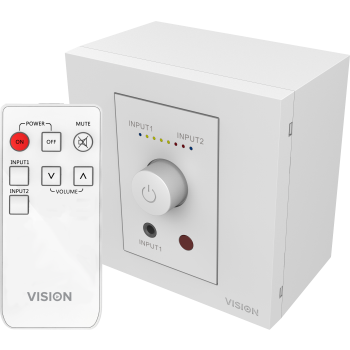

Remote Control
The package includes a remote control, and IR receivers are conveniently positioned on the front and rear for seamless integration with a control system like the Techconnect Control. Note this amplifier does not have tone control capabilities.
-
Easy to Install and Uninstall
The module is designed to be robust yet simple to install or remove, and it can be easily disconnected from the front. With removable phoenix connectors, even non-technical end users can uninstall it when necessary.
-
Cables Included
The package comes with speaker cables included, as well as short input cables for easy connection to the rear of adjacent input modules on the Techconnect system.
-
Secure
Being wall-mounted, it becomes less conspicuous and less susceptible to theft since it is securely fixed to the wall. This makes it a practical and secure solution for various environments.
-
Close at Hand
With the ability to be positioned anywhere in the room, this product is an ideal choice for training rooms, boardrooms, and classrooms.
-
Integrated Techconnect Family
The package includes a single-gang backbox and surround for mounting. Alternatively, you have the option to mount it in a double-gang surround alongside other Techconnect modules, offering flexibility in customizing your installation setup.
Related
-
1x TC3 50w AmplifierStock: 825TC3-AMP / SAP: 3446595
-
1x TC3-AMP+SP-1800Stock: 378TC3-AMP+SP-1800 / SAP: 3692237
-
1x Pair Ceiling Loudspeakers + TC3 50w AmplifierStock: 192TC3-AMP+CS-1900 / SAP: 5356158
Specifications
-
AMPLIFIER MODULE DIMENSIONS
42 x 64 x 36 mm
-

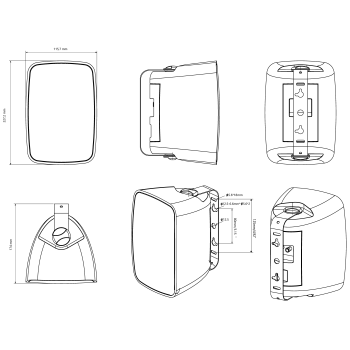

LOUDSPEAKER DIMENSIONS
228 x 156 x 153 mm / 9.0" x 6.1" x 153" (height x width x depth)
-
BACKBOX DIMENSIONS
86 x 86 x 45 mm
-
SURROUND DIMENSIONS
86 x 86 x 8 mm
-
CARTON DIMENSIONS
430 x 272 x 263 mm / 19.9" x 10.7" x 10.3"
-
AMPLIFIER WEIGHT
63 grams
-
LOUDSPEAKER WEIGHT
1.42 kg / 3.1 lb (each)
-
PACKAGED WEIGHT
5.0 kg / 11.0 lb
-
COLOUR
White
-
INPUTS
2 x Stereo inputs via removable phoenix connectors
One input is duplicated with a minijack on front panel. -
AMP POWER OUTPUT
2 x 25W @ 8 OHMS
-
AMP TOTAL HARMONIC DISTORTION
less than or equal to 1% (20Hz~22kHz)
-
AMP FREQUENCY RESPONSE (LINE IN)
80Hz~22kHz(±2dB)
-
AMP SIGNAL TO NOISE RATIO (LINE IN)
more than or equal to 98dB (A-weighted)
-
AMP RATING INPUT LEVEL/IMPEDANCE
Line in 500mV/50k Ω
-
POWER CONSUMPTION (RATING CONDITION)
less than or equal to 50W
-
LOUDSPEAKER DYNAMIC RANGE
80 - 20,000 Hz
-
LOUDSPEAKER DESIGN
1 x 5.25" broadband driver with bass reflex port
-
LOUDSPEAKER SENSITIVITY
89 dB (1w/1m)
-
LOUDSPEAKER IMPEDANCE
8 Ohms
-
ACCESSORIES INCLUDED
1 x Single-gang Backbox
1 x Single-gang Surround
2 x 150mm input cables
2 x Unshielded Speaker cable 5m long
1 x Remote Control with batteries
2 x Wall Loudspeaker brackets -
POWER SUPPLY
100-240v 50/60Hz AC External Laptop-Style Power Supply – 15 volt / 4 amp
-
POWER CABLES
4 x 0.5 m (4 x 1.6 FT) Figure-8
UK/EU/AU -
DC TAIL LENGTH
4m
-
TRANSFORMER DIMENSIONS
108 x 50 x 33mm
-
MATERIAL
Backbox: ABS
Surround and modules: PC -
WARRANTY
Lifetime return-to-base
-
COMPLIANCES
RoHS, WEEE, CE/EMC, C-TICK, FCC, IC, UKCA
-
SPARE IR REMOTE CONTROL
TC3-AMP RC [EU SAP:3940956]
-
ORDER PART CODE
TC3-AMP+ [SAP: 8468232]
-
Country of Origin
China
-
ISO
ISO 9001:2015
