Specifications

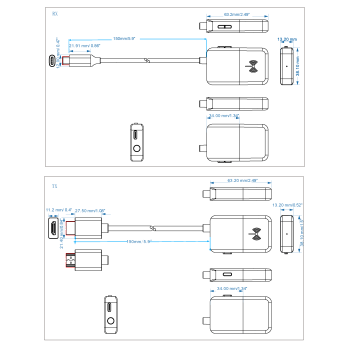

• ENCLOSURE DIMENSIONS

  63 x 38 x 13 mm (2.5″ x 1.5” x 0.5″)

• PRODUCT WEIGHT

  0.1 kg (0.2 lb)

• PACKAGED WEIGHT

  0.1 kg (0.26 lb)

• PACKAGED DIMENSIONS

  120 mm x 120 mm x 40 mm (4.7" x 4.7" x 1.6")

• COLOUR

  Black/Grey

• TAIL LENGTH

  150 mm (6")

• WIRELESS TECHNOLOGY

  WIFI5 802.11ac 5GHz PtP point-to-point

• RANGE

  10 Metres (33 feet)

• TX POWER SOURCE

  Requires 5V with minimum 1A
  It can draw power from USBC 3.1 port. A backup USBC socket is integrated if external power is needed.

• RX POWER SOURCE

  Requires 5V with minimum 1A
  Most HDMI ports only output 0.5A. A USBC socket is integrated for external power.
  A USBA to USBC cable is provided to draw power from a spare USBA port on display device.

• CABLE SPECIFICATIONS

  TX: 32 AWG, OD 5.0 mm
  RX: 32 AWG, OD 4.5 mm

• RESOLUTION

  Maximum 4K 30 Hz (3840 x 2160)

• OPERATING TEMPURATURE

  48 Degrees Celcius
  Note: it is normal to be very warm to touch

• ACCESSORIES

  1 x USBA to USBC cable for Rx power 0.8 m (2.7")

• COMPLIANCE

  RoHS, CE, REACH, TSCA, MSDS

• WARRANTY

  Limited Lifetime

• ORDER PART CODE

  TC-USBCW [SAP: 11546435]

• Country of Origin

  China

• ISO

  ISO 9001:2015
