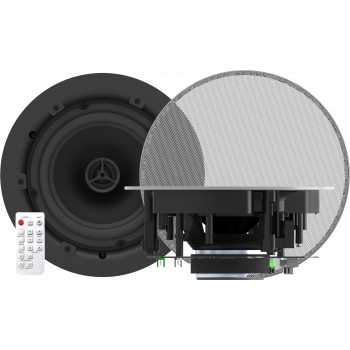

Pair 60w Active Bluetooth Ceiling Speakers
- End of Life September 2021 Replaced by CS-1900P
Key Points
- Integrated 2 x 30 watt (RMS) amplifier
- 1 x wired input / 1 x Bluetooth input
- Can be daisy-chained
- IR remote included
- Total 0
Videos
Training
Introduction
The CS-1800P are based on Vision’s passive ceiling loudspeakers but have a powerful 60 watt amplifier built in to eliminate the need for an external amplifier. They are suited to meeting rooms and classrooms where a discrete audio solution is required. Ideal for meeting spaces or use at home.
Features
-
Bluetooth 4.0
Connect directly from your phone or laptop wirelessly. Note: implementation of Bluetooth drivers on Windows computers is variable so they don’t always work
-
Rename Bluetooth
***Available on all stock shipping from Feb 2018 Connect to a PC via USB to rename and set the pin.
-
Auto-Switching
You can choose to automatically change to the Bluetooth input when a device is paired, or manually switch when you are ready.
-

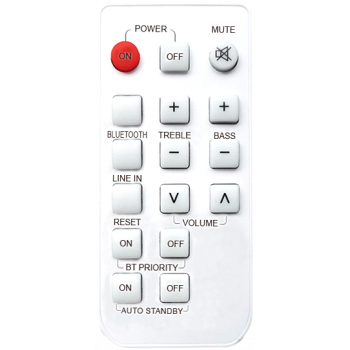

Remote Control
A full range of options are presented on the IR remote control, including bass and treble adjustment.
-
IR Front and Rear
Switch between the front IR receiver, or the rear IR receiver (if using a wired control system), or off.
-
Master/Slave

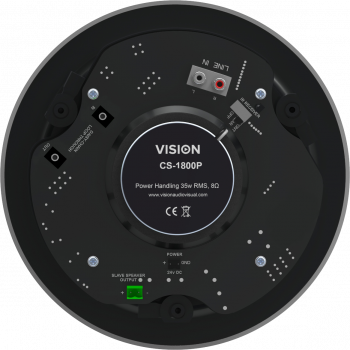

Like Vision’s other powered loudspeakers these are packaged and sold as a pair. The amplifier is housed in the “master” loudspeaker which has the connection panel, and there is a speaker output which connects to the passive “slave” loudspeaker.
-
Daisy-Chain
If you require two pairs for the room an audio output allows you to pass the audio signal on to a second pair of CS-1800P. In fact you can daisy-chain as many pairs as you need using this line-level audio output.
-
RS-232
To assist with integration into a fully controlled audio-visual environment these loudspeakers can be controlled with RS-232 (serial) codes.
-
Memory
When power is connected the CS-1800P automatically turns on and remembers the previous input and volume setting. Restoring power brings the loudspeakers back to life automatically.
-

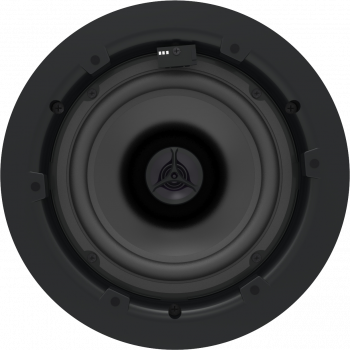

2-Way Drivers
These loudspeakers feature a two-way woofer and tweeter design which sounds great in presentation or teaching environments.
-
Auto-Standby
If the amplifier senses no input it will automatically go into standby mode. As soon as you press play on your source device it will automatically switch on again. This automatic feature can be disabled with the remote control.
-
Bezel-less Grille
The bezel-less grille clips into place magnetically once the speakers are secured.
-
Simple to fit
A cutout template is included so the installer can easily trace the cut line in the ceiling tile. Cut a 198 mm (7.8″) hole and fit the speaker; it’s quick and easy.
-

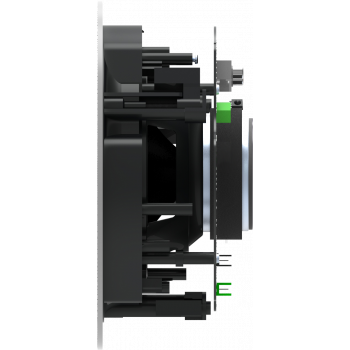

Shallow
Only 95 mm (3.74″) deep, the CS-1800P can be placed optimally around the room. They fit in any environment which has a false ceiling.
-
Crossover
A high quality crossover circuit is included to split the work between the woofer and tweeter.
Specifications
-
LOUDSPEAKER DIMENSIONS
232 x 95 mm/ 9.1″ x 3.7″ (diameter 224 mm without grille)
-
CUTOUT SIZE
198 mm / 7.8″
-
CARTON DIMENSIONS
250 x 250 x 270 mm / 9.8″ x 9.8″ x 10.6″
-
SPEAKER WEIGHT MASTER
1.3 kg / 2.9 lbs
-
SPEAKER WEIGHT SLAVE
1.2 kg / 2.7 lbs
-
CARTON WEIGHT
4.0 kg / 8.8 lbs (per pair)
-
CONSTRUCTION MATERIAL
Plastic (ABS)
-
COLOUR
White
-
AMPLIFIER OUTPUT
2 x 30 watts (RMS)
-
WOOFER
6.5″ Polypropylene
-
TWEETER
0.5″ Silk
-
OUTPUT IMPEDANCE
8 ohms
-
SENSITIVITY
89 dB (1w/1m)
-
FREQUENCY RESPONSE
80 Hz-20 kHz
-
POWER CONSUMPTION
≤ 70 w
-
LINE-LEVEL INPUT
2-Phono
-
SPEAKER OUTPUT
Phoenix connector
-
DAISY-CHAIN INPUT
3.5mm Minijack
-
DAISY-CHAIN OUTPUT
3.5mm Minijack
-
SPEAKER INPUT
Phoenix connector
-
ACCESSORIES INCLUDED
1 x Speaker Cable 5 m (16.4′) long
1 x Remote Control (Battery included: CR2025 3V Li-Mn) -
POWER SUPPLY
100-240v 50/60Hz AC External Power Supply – 24 volt / 3 amp
-
LAPTOP-STYLE TRANSFORMER
-
INCLUDES 4 X 0.5M FIGURE-8 POWER CABLES
UK/EU/US/AU
-
DC TAIL LENGTH
1.5m (5ft)
-
TRANSFORMER DIMENSIONS
120 x 52 x 32 mm / 4.72″ x 2.0″ x 1.2″
-
WARRANTY
Lifetime return-to-base
-
COMPLIANCE
RoHS, CE/EMC, IEC, RCM-SDOC, RCM-POC, BT, CE-RED, FCC-BT3, FCC-BT4, REACH
-
SPARE IR REMOTE CONTROL
CS-1800P RC [EU SAP: 3940955 / US SAP: 12928306]
-

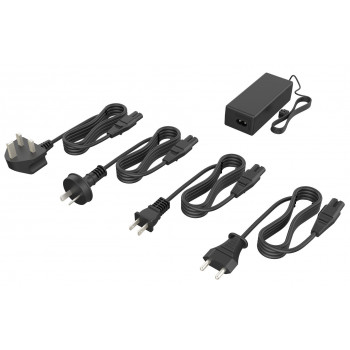

SPARE POWER SUPPLY UNIT (PSU)
TC2 P24V3A [EU SAP: 3940953/ US SAP: 13445528]
-
ORDER PART CODE
CS-1800P [SAP: 3715630]
-
Country of Origin
China
